FPC : Flexible Printed Circuits

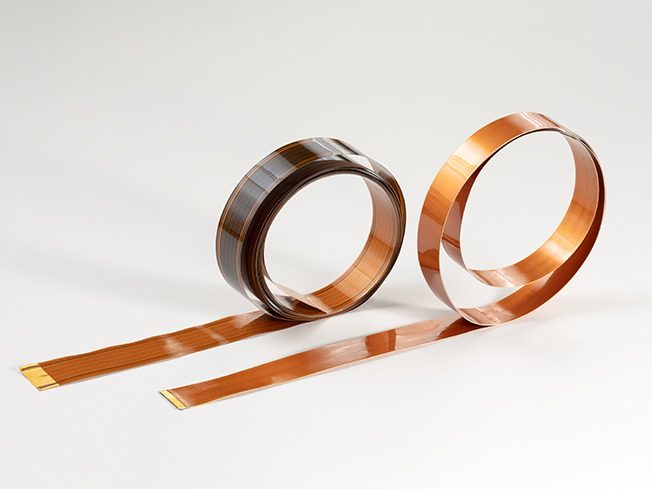

Long High-Speed Transmission FPC
Overview
OKI Electric Cable’s long-length technology and high-speed transmission technology are integrated to to realize long-distance transmission of high-speed signals.
Features
- The transmissible distance is three times longer than that of a general high-speed transmission FPC. Long high-speed transmission similar to that of cables can be performed while maintaining the thinness and lightness of the FPC.
- Use of low-loss materials and unique pattern design enables transmission of up to 1 meter on USB3.0 standards.
- The measurements of various transmission properties such as characteristic impedance, loss, and crosstalk of products can also be supported on request.
Application examples
- This FPC can be used for wiring in high-speed transmission inside large equipment.
In addition, the FPC has also been adopted for wiring of the astronomical observation equipment.
Tokyo University Atacama Astronomical Observatory (TAO), 6.5 m telescope
(Images provided by: Tokyo University TAO Project)
