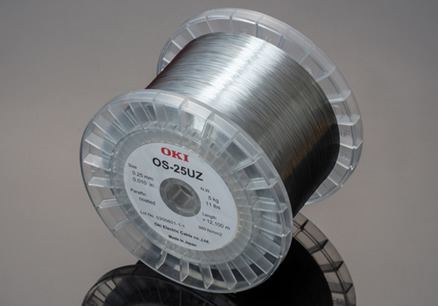

OS-UZ wire
Features
- It is a soft-type electrode wire.
- It has low elasticity and exhibits maximum performance in wide-angle taper machining.
- Uses high purity material containing minimal impurities.

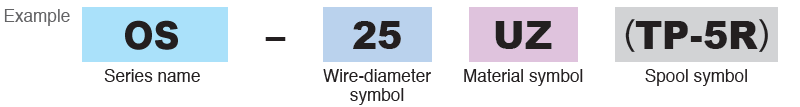

Rule of product naming
Wire diameter and characteristics
| Wire diameter (mm) |
Diameter tolerance (mm) |
Tensile strength (MPa) |
Elongation (%) |
| 0.20 - 0.30 |
±0.001 |
800 or more |
3.0 or less |
Product lineup
| Spool symbol |
Spool color |
Spool weight |
0.10mm |
0.15mm |
0.20mm |
0.25mm |
0.30mm |
| P-3R |
Gray |
3 |
- |
- |
- |
- |
- |
| TP-5R |
Transparent |
5 |
- |
- |
○ |
○ |
○ |
| P-10RA |
Transparent |
10 |
- |
- |
○ |
○ |
○ |
| P-15RA |
Gray |
20 |
- |
- |
○ |
○ |
○ |
| K-160 * |
White |
6 |
- |
- |
○ |
○ |
○ |
| K-200 * |
White |
15 |
- |
- |
○ |
○ |
○ |
- * : DIN standard size spools ○: A standard stock product, --: A product on order
- * : Please contact us for our lineup of other products.
- * : Please refer to page 19 for spool specifications.
- * : Stock status changes constantly, so please check when ordering.
