Cool Staff
"Cool Staff ® " is a heat sink film with flexibility and high heat dissipation by several combinations. It is easy to dissipate heat only by putting the films on IC for example. Two types such as Sheet type and Tube type are on line up as a standard, also wing version and infinity version, which uses air convection.
CoolStaff Outline etc
Heat Sink film with flexibility and high heat dissipation by several combinations
- Feature1
- High efficiency of heat emission by combination of heat conduction, heat radiation and heat convection
- Feature2
- Easy mounting and simple construction
- Feature3
- Thin and easy formation by seizers and stamping die
- Feature4
- RoHS compliant and No siloxane gas

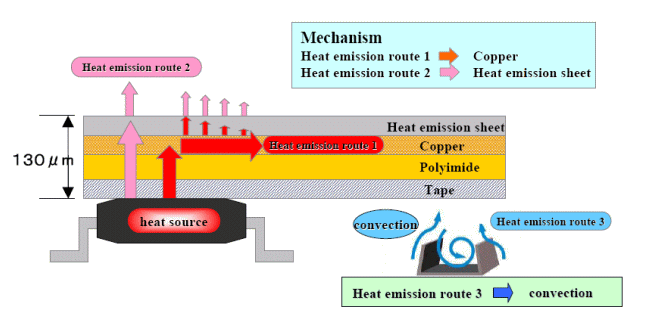

Constriction and mechanism
Line up
Sheet Type
Normal
Wing
| 20,30,40,50mm Squarer Sheet W 240mm × H 250mm |
Tube Type
Normal
Infinity
| W 20,30,40,50mm Slit 5 to 30mm |
W 30mm Slit 10 to 25mm |
- *1 : We accept size requirements
Examples
Tube type (Normal version)
- Conduction

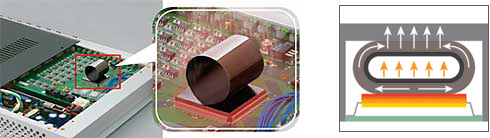

- Heat conduction to frame
Sheet type (Normal version)
- Emission

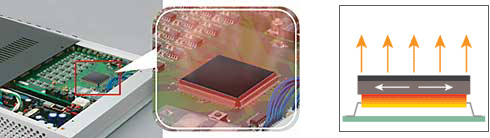

- Heat emission by far infrared ray
Sheet type (Wing version)
- Convection

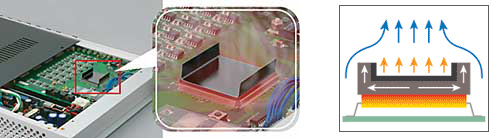

- Heat conduction by convection

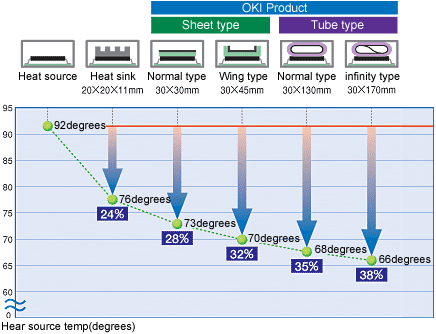

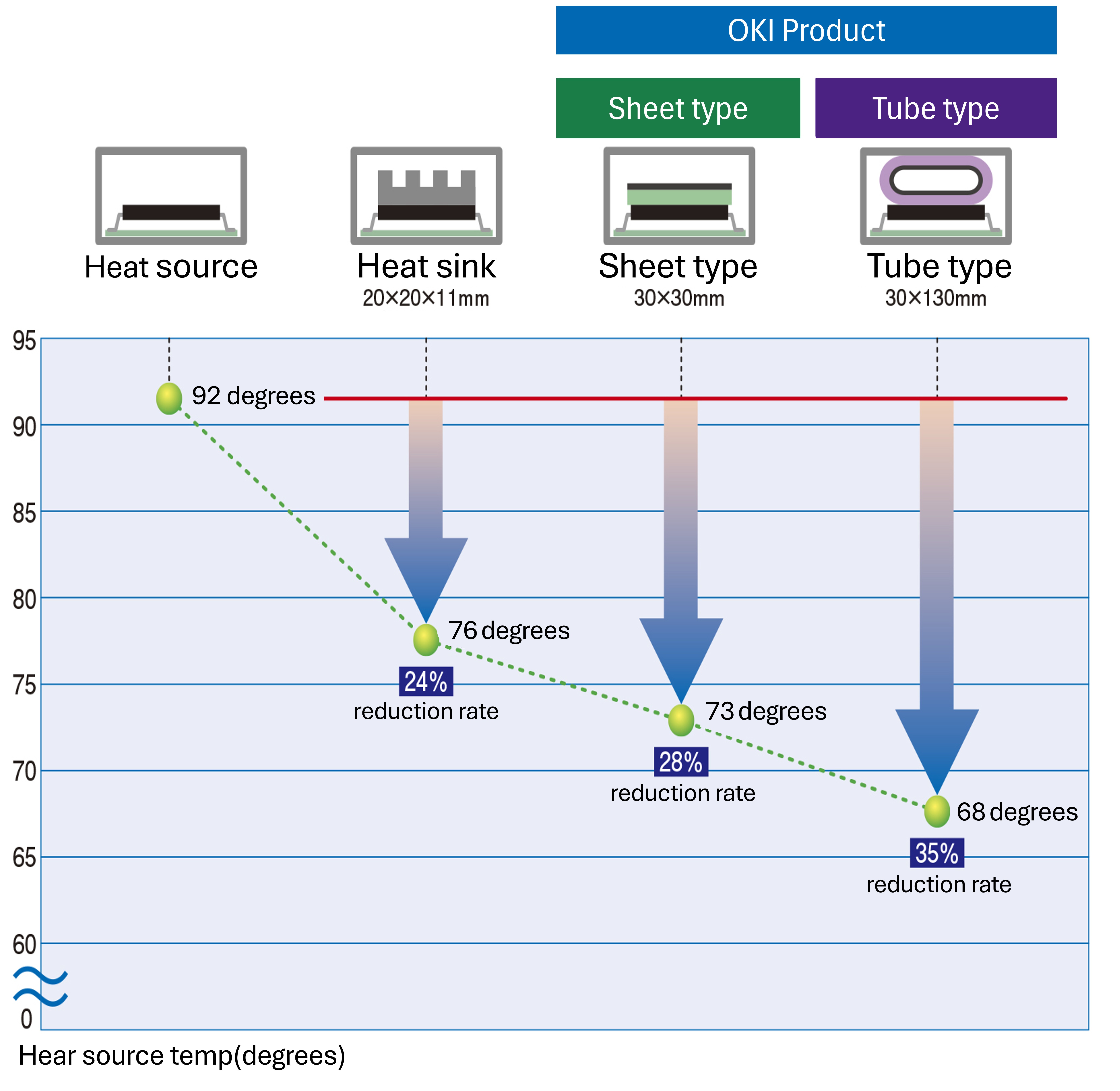

Heat emission effectiveness of Cool staff
| power | 1W |
|---|---|
| Surrounding temp. | 25 degrees |

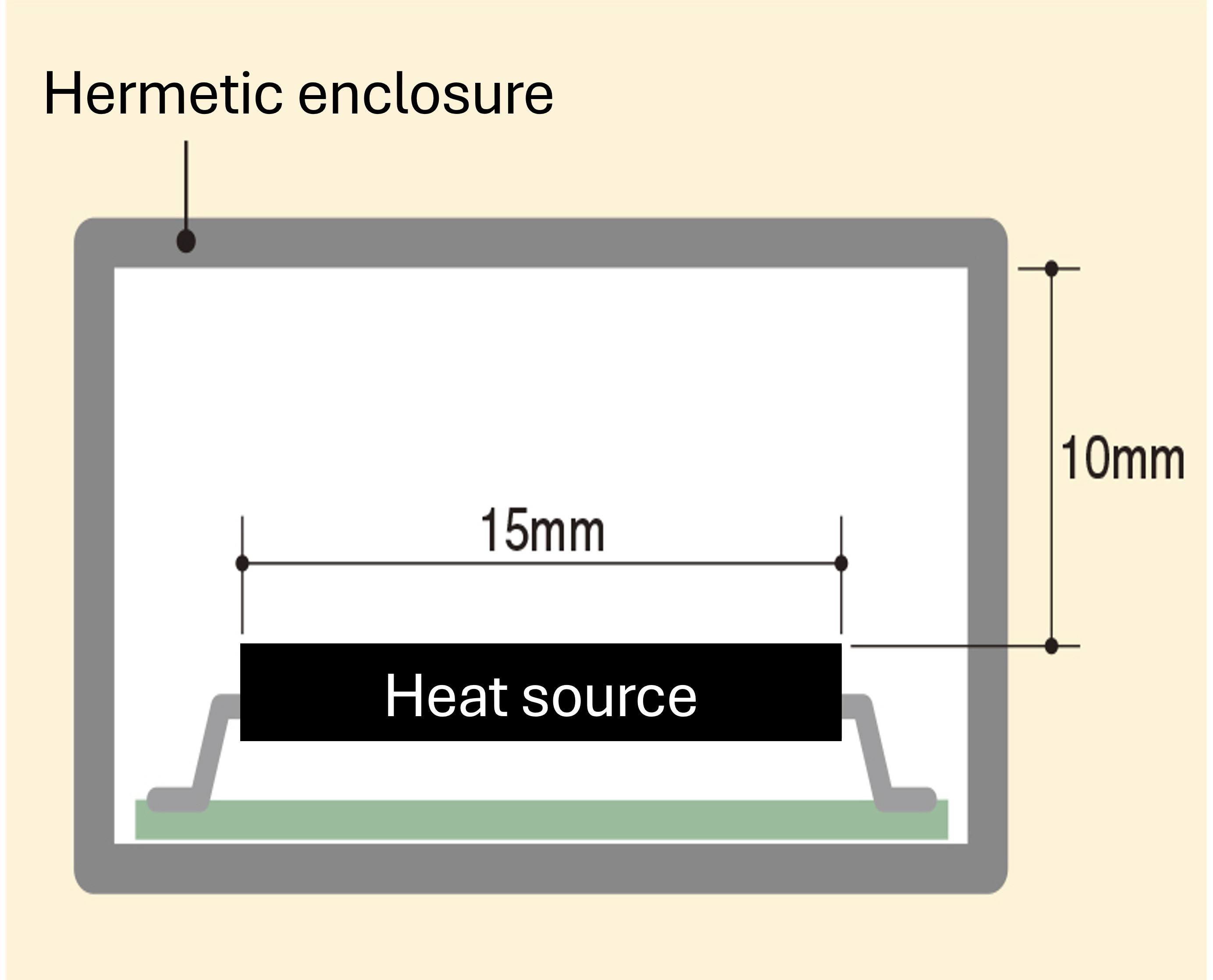

| Surrounding | No window |
| Frame size | 100×100×100mm |
| Frame material | Plastic |
Standard Specifications
| Sheet Type | Tube Type | |||
|---|---|---|---|---|
| Normal | Wing | Normal | Infinity | |
| Thickness(approx.) | 0.13mm | 0.13mm | 0.13mm | 0.13mm |
| Typical Size | 20mmSQ | 20mmSQ | 20mmSQ(Gap 5-15mm) | 30mmSQ(Gap 10-15 mm) |
| 30mmSQ | 30mmSQ | 20mmSQ(Gap 15-30mm) | 30mmSQ(Gap 15-20 mm) | |
| 40mmSQ | 40mmSQ | 30mmSQ(Gap 5-15mm) | 30mmSQ(Gap 20-25 mm) | |
| 50mmSQ | 50mmSQ | 30mmSQ(Gap 15-30mm) | ||
| 240mm x 250mm | 40mmSQ(Gap 5-15mm) | |||
| 40mmSQ(Gap 15-30mm) | ||||
| 50mmSQ(Gap 5-15mm) | ||||
| 50mmSQ(Gap 15-30mm) | ||||
| Insulation resistance | 1x1011 Ω or more | |||
| Heat resistance | 120 degrees | |||
Great benefit of Cool Staff
- Suitable for closed space
- For a space where Fans and heat sinks do not work.
- Possible for use in the small gap (T : 130μm)
- Possible for three dimensional allocation with Flexibility
- For a space where Fan wind do not reach.
- For weight reduction 0.4mg 30x30mm → Extra light
Improvement for thermal designing free
- Inquiries regarding materials, consultations, and technology
- Inquiry from Web: Inquiry form
