Okiflex

OKIFLEX for 3 AMP(UL STYLE NO. 2651 105°C 300V)

It is compatible with 1.59mm (0.06In.) pitch connectors. This flat cable is optimum for use in driver circuits through which a relatively large current flows. Available in two types, a bridge type and a slit type.

Features

3-Ampere OKIFLEX (UL2651)

Available in bridge type or Slit type and is ideal for the driving circuit of a device, etc.
This product is environment-responsive.This product is RoHS compliant.

Applications

OKIFLEX is ideal for the driving circuit of vending machines, controllers, office equipment, etc.

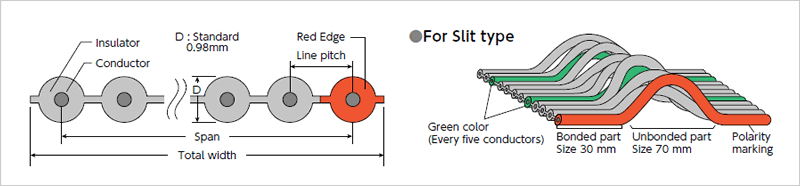

Shape

Specifications

Conductor resistance Ω/km (20℃)	89.4 or less
Insulation resistance MΩ/km (20℃)	100 or more
Dielectric Strength V/min	2000
Capacitance pF/m *1	Standard 56
Characteristic impedance (Ω) *1	Standard 90
Propagation delay ns/m *1	Standard 5.1
Near-end crosstalk % *1	Standard 3.6
Flame Resistance	VW-1

*1 :The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.

Product name /Type/Color/scheme for core wires 23

Bridge type FLEX-B( )-7/0.2 2651 Red side mark, All others = Gray
Slit type FLEX-S( )-7/0.2 7030 2651 Red-Gray-Gray-Gray-Green…No. 1 core wire = Red, No. 5n core wire = Green, Others = Gray

*2 :In the brackets of the above product names, enter the number of core from the Configuration Table.
*3 :A printed model is also available.

Configuration table

Number of cores	Conductor	Insulator	Span mm	Total Width mm	Wire pitch mm	Sandard length
16	7/0.2 (AWG24)	Flexible polyvinyl chloride	23.85	25.44	1.59	61 m (200 ft.) per reel
20			30.21	31.80
26			39.75	41.34
34			52.47	54.06
40			62.01	63.60
50			77.91	79.50
