Multipair Cable

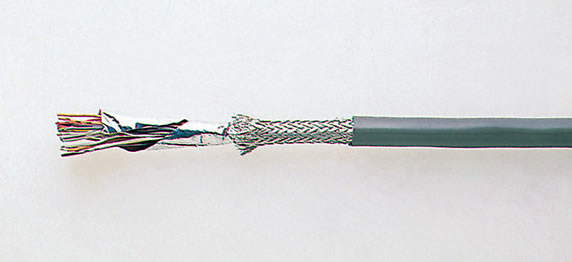

High density cable type OKIFLEX(UL STYLE NO. 20276 80°C 30V)
Overview
The outer diameter of the cable type OKIFLEX insulator has been made smaller. Its smaller size makes it suitable for wiring in high-density areas. A shielded type is also available.
Features
- Since tin-plated copper wires AWG30 (7/0.1 mm) are used for the conductor, this model can be batch connected to high-density IDC connectors using insulation displacement contacts by treating the cable terminal in 0.635 mm pitch with laminate alignment.
- The twisted-pair structure eliminates the possibility of crosstalk, and the optional shielded model is effective for RFI/EMI prevention.
- This product is environment-responsive.This product is RoHS compliant.
Applications
This model is ideal for the internal wiring of computers, terminal equipment, communication instrument, controllers, office equipment, etc. as well as for the wiring connections between devices.

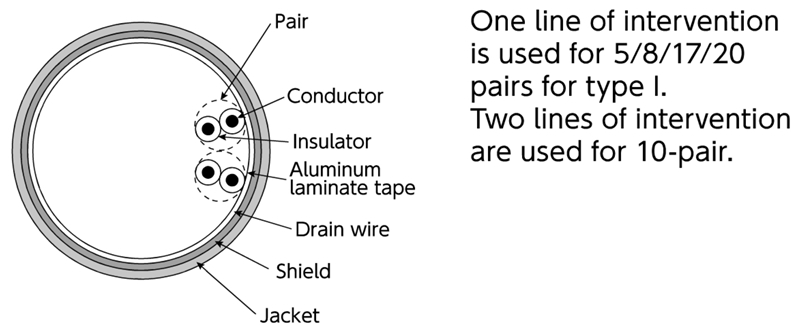

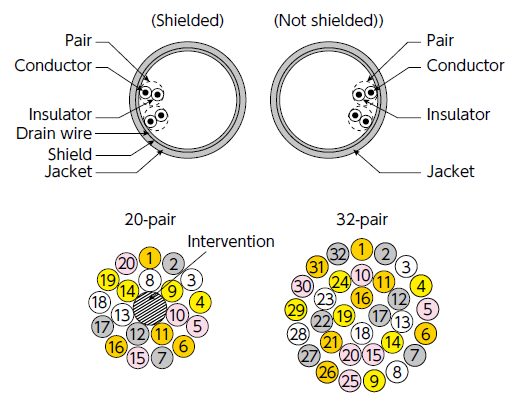

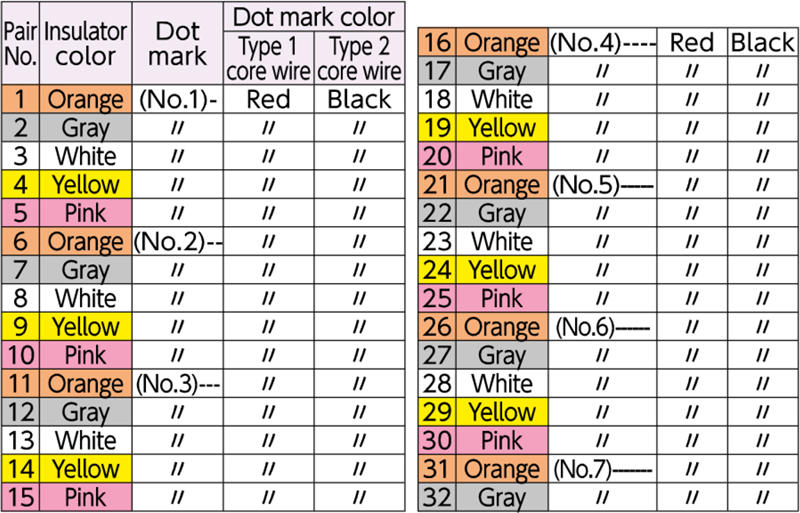

Shape
One line of intervention is used for 5/8/17/20 pairs Two lines of intervention are used for 10-pair.
Specifications(Shielded)
| Conductor resistance Ω/km (20°C) | 362 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 1 or more |
| Dielectric Strength V/min | 500 |
| Capacitance pF/m *1 | Standard 150 |
| Characteristic impedance (Ω) *1 | Standard 93 |
| Propagation delay ns/m *1 | Standard 5.0 |
| Near-end crosstalk % *1 | Standard 4.8 |
| Flame Resistance | VW-1 |
- *1 : The measurement for capacitance, characteristic impedance, propagation delay and near-end crosstalk are all grounded except the measurement target pairs.
Product name
7/0.1 (a)P HRV16-(b)(20276)SB *2 *3
- *2 : Enter the number of pairs in (a) and with/without shield in (b) as shown below. V…Not shielded SV…Braided shield
- *3 : SB indicates the jacket color symbol (warm gray).
Configuration Table
| Number of pairs |
Number of cores |
Conductor (pcs/mm) |
Insulator outer diameter (mm) |
Jacket (shielded) *4 | Packaging unit | |
|---|---|---|---|---|---|---|
| Thickness (mm) | Outer diameter(mm) | |||||
| 5 | 10 | 7/0.1 (AWG30) | 0.62 | 0.9 | 5.4 | 100 m (328 ft.) |
| 8 | 16 | 6.2 | ||||
| 10 | 20 | 6.6 | ||||
| 13 | 26 | 6.9 | ||||
| 15 | 30 | 7.1 | ||||
| 17 | 34 | 7.4 | ||||
| 20 | 40 | 7.8 | ||||
| 25 | 50 | 8.3 | ||||
| 30 | 60 | 8.8 | ||||
| 32 | 64 | 8.9 | ||||
| 40 | 80 | 10.2 | ||||
| 50 | 100 | 10.4 | ||||
- *4 : Shielded models use a drain wire (10/0.12).
