Okiflex
Flexible type OKIFLEX(UL STYLE NO. 20050 80°C 150V)
It is compatible with 1.27mm (0.05 in.) pitch connectors. This cable uses AWG28 (19/0.08) as the conductor. Each core wire is bonded in the longitudinal direction. Compared to a conventional flat cable, the number of strands in the conductor has been increased for the flexibility. Suitable for wiring for moving parts.
Features
- This model features a flexible twisted conductor, making it ideal for the wiring of moving parts.
- A model with superior oil-resistance is also available.
- This product is environment-responsive.This product is RoHS compliant.
Applications
OKIFLEX is ideal for the internal wiring of computers,terminal equipment, communication instrument,controllers, office equipment, etc.
Specifications
| Conductor resistance Ω/km (20°C) | 206 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 10 or more |
| Dielectric Strength V/min | 1500 |
| Capacitance pF/m *1 | Standard 61 |
| Characteristic impedance (Ω) *1 | Standard 98 |
| Propagation delay ns/m *1 | Standard 5.4 |
| Near-end crosstalk % *1 | Standard 3.4 |
| Flame Resistance | VW-1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.

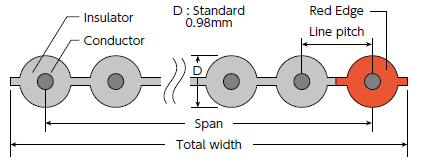

Shape
Product name /Type/Color/scheme for core wires *2
| FLEX-B( )-19/0.08 20050 *3 | Red side mark, All others = Gray |
|---|
- *2 : In the brackets of the above product names, enter the number of core from the Configuration Table.
- *3 : A flexible OKIFLEX type featuring the AWG26 conductor (FLEX-B( )-30/0.08) is also available.
Configuration Table
| Number of cores |
Conductor (pcs / mm) |
Insulator | Span (mm) |
Total width (mm) |
Line pitch (mm) |
Packaging unit |
|---|---|---|---|---|---|---|
| 8 | 19/0.08 (AWG28) |
Flexible polyvinyl chloride |
8.89 | 10.2 | 1.27 | 61 m (200 ft.) per reel |
| 10 | 11.43 | 12.7 | ||||
| 14 | 16.51 | 17.8 | ||||
| 16 | 19.05 | 20.3 | ||||
| 20 | 24.13 | 25.4 | ||||
| 24 | 29.21 | 30.5 | ||||
| 25 | 30.48 | 31.8 | ||||
| 26 | 31.75 | 33.0 | ||||
| 30 | 36.83 | 38.1 | ||||
| 34 | 41.91 | 43.2 | ||||
| 40 | 49.53 | 50.8 | ||||
| 50 | 62.23 | 63.5 | ||||
| 60 | 74.93 | 76.2 | ||||
| 64 | 80.01 | 81.3 |
