Okiflex
OKIFLEX with S-shaped structure(UL STYLE NO.20266 80°C 150V)
Overview

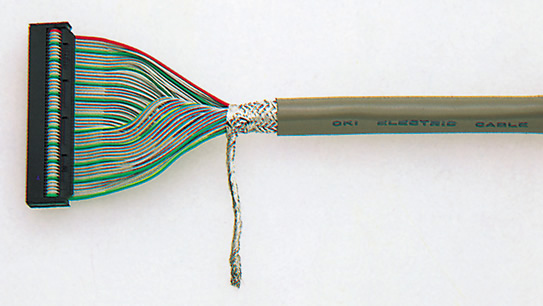

Terminal treatment example
Inside the PVC jacket, the Slit-type OKIFLEX is folded into an S-shape and arranged in a circular form, making it ideal for wiring in complex enclosures and between devices. A shielded type is also available.
Features
- This model is more compact, lightweight and flexible thanks to a smaller outer diameter than the conventional models.
- Terminal treatment is easier since intervention is no longer required.
- For connection between devices, this model can be cut to the specified length; and the terminal core wires can be laminated flat (1.27 mm pitch) and batch connected to an IDC connector using batch insulation displacement contacts.
- It is designed to prevent deterioration of pitch precision, so the contact with the connector is extremely reliable.
- A shielded type is also available.
- This product is environment-responsive.This product is RoHS compliant.
Applications
This model is ideal for the internal wiring of computers,terminal equipment, communication instrument,controllers, office equipment, etc. as well as for the fixed wiring connections between devices.

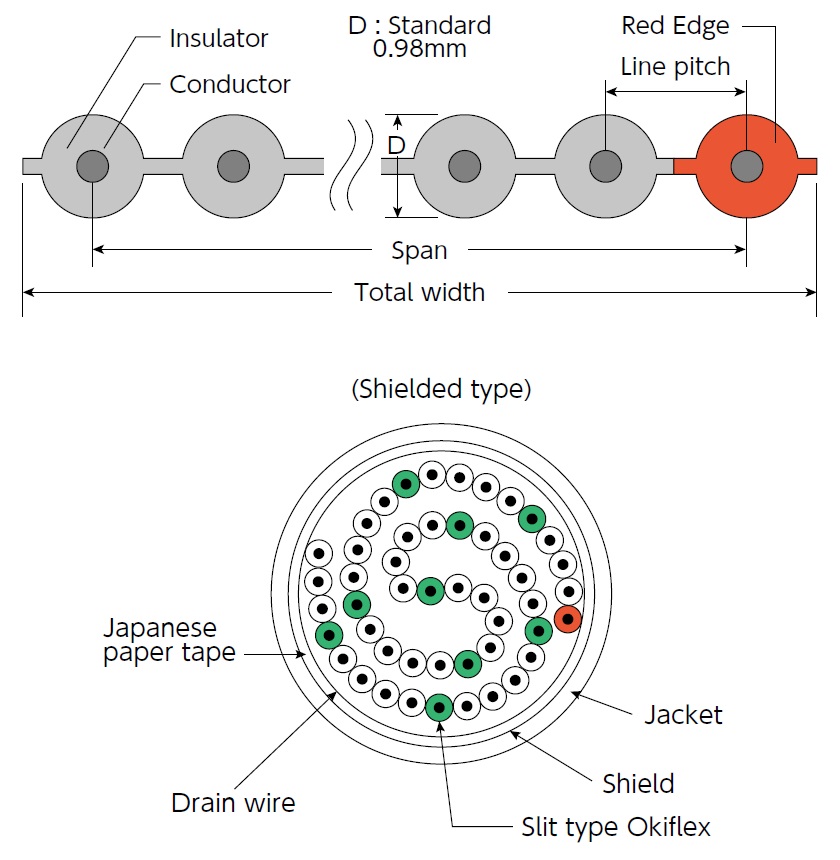

Shape
Specifications
| Not shielded | Shielded | |
|---|---|---|
| Conductor resistance Ω/km (20°C) | 222 or less | 222 or less |
| Insulation resistance MΩ-km (20°C) | 10 or more | 5 or more |
| Dielectric Strength V/min | 1500 | 1500 |
| Capacitance pF/m *1 | Standard 65 | Standard 95 |
| Characteristic impedance (Ω) *1 | Standard 95 | Standard 75 |
| Propagation delay ns/m *1 | Standard 5.2 | Standard 6.0 |
| Near-end crosstalk % *1 | Standard 6.5 | Standard 6 |
| Flame Resistance | VW-1 | VW-1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the G SG mode. The shield and drain wire are grounded for the shielded models.
Product name notation
SFX-S (a)-7/0.127 3030-(b)(20266)SB *2*3*4
- *2 : Enter the number of pairs in (a) and with/without shield in (b) as shown below.
V……Not shielded SV……Braided shield A dual-shield type is also available upon request. - *3 : 3030 indicates a non-fused part of 30 mm and fusion part of 30 mm of the Slit.
- *4 : SB indicates the jacket color symbol (warm gray).
Configuration Table
| Number of cores | Conductor (pcs/mm) | Total width (mm) | Jacket (shielded) *5 | Packaging unit | |
|---|---|---|---|---|---|
| Thickness (mm) | Outer diameter (mm) | ||||
| 10 | 7/0.127 (AWG28) |
12.7 | 0.9 | 6.6 | 100 m (328 ft.) per reel |
| 16 | 20.3 | 8.4 | |||
| 20 | 25.4 | 8.5 | |||
| 26 | 33.0 | 9.6 | |||
| 30 | 38.1 | 10.4 | |||
| 34 | 43.2 | 10.9 | |||
| 40 | 50.8 | 11.8 | |||
| 50 | 63.5 | 13.3 | |||
| 60 | 76.2 | 13.3 | |||
| 64 | 81.3 | 13.6 | |||
- *5 : Shielded models use a drain wire (10/0.12).
