Okiflex
Eco-OKIFLEX(UL STYLE No.4539 105°C 300V)
It is compatible with 1.27 mm (0.05 in.) pitch. Environmentally-friendly non-halogen insulation type.
The rated temperature of the environmentally-friendly, non-halogen "Eco OKIFLEX" has improved from 80 deg C to 105 deg C for greater heat resistance.
Features
- Based on Oki Electric's proprietary technologies, this model uses non-PVC, non-halogen resin for its conductor and yet offers the same level of flexibility and electrical characteristics as the conventional models.
- This product is environment-responsive. This product is RoHS compliant.
- Heat resistance performance has improved from 80 deg C to 105 deg C.
Applications
This model is ideal for the fixed internal wiring of computers, peripheral equipment, communication instrument, office equipment, etc.

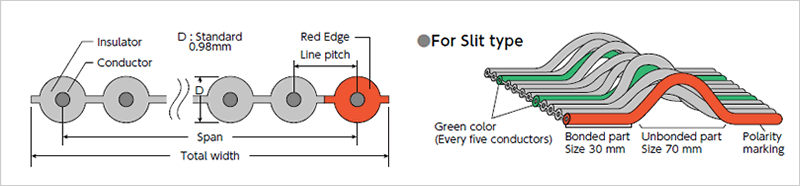

Shape
Specifications(Shielded)
| Conductor resistance Ω/km (20℃) | 222 or less |
|---|---|
| Insulation resistance MΩ/-km (20℃) | 100 or more |
| Dielectric Strength V/min | 2000 |
| Capacitance pF/m*1 | Standard 51 |
| Characteristic impedance (Ω)*1 | Standard 100 |
| Propagation delay ns/m*1 | Standard5.0 |
| Near-end crosstalk %*1 | Standard 5.0 |
| Flame Resistance | VW-1 |
- *1 :The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.
Product name/Type/Color scheme for core wires *2
| FLEX-BN( )-7/0.127 4539P Bridge type Red-Gray-Gray-Green…No.1 core wire = Red, No.5n core wire=Green, Others=Gray |
|---|
| FLEX-SN( )-7/0.127 7030 4539P Slit type *3 Red-Gray-Gray-Green…No.1 core wire=Red, No.5n core wire=Green, Others=Gray |
- *2 :In the brackets of the above product names, enter the number of core from the Configuration Table.
- *3 :7030 indicates a non-fused part of 70 mm and fusion part of 30 mm.
Configuration Table *4
| Number of core wires | Conductor | Insulator | Span mm | Total width mm | Wire pitch mm | Standard length |
|---|---|---|---|---|---|---|
| 10 | 7/0.127 (AWG28) |
Flame-retarding polyolefin | 11.43 | 12.7 | 1.27 | 61 m (200 ft.) per reel |
| 14 | 16.51 | 17.8 | ||||
| 16 | 19.05 | 20.3 | ||||
| 20 | 24.13 | 25.4 | ||||
| 24 | 29.21 | 30.5 | ||||
| 26 | 31.75 | 33.0 | ||||
| 30 | 36.83 | 38.1 | ||||
| 34 | 41.91 | 43.2 | ||||
| 40 | 49.53 | 50.8 | ||||
| 50 | 62.23 | 63.5 | ||||
| 60 | 74.93 | 76.2 | ||||
| 64 | 80.01 | 81.3 |
- *4 :This product is made to order for all numbers of cores/types.
