Multipair Cable

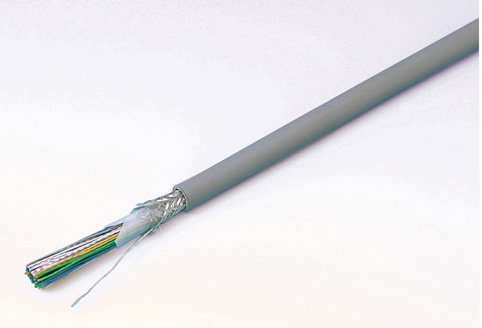

Eco/Small-diameter I/O cable(UL STYLE No.21100 80°C 30V)
Overview
An environmentally-friendly, non-halogen insulated I/O cable with a small diameter, designed for high-density pressure welding. Suitable for applications requiring densely packed device-to-device mounting and contributes to reducing device size.
Environmentally-friendly, non-halogen insulation version has been added to our popular "Small-diameter I/O Cable" renowned for its contribution to achieving highdensity mounting of multiple devices as well as their downsizing.
Features
- This model uses non-halogen polyolefin resin for the conductor and jacket materials and yet offers the same level of flexibility, flame retardancy and electrical characteristics.
- This product is environment-responsive.
This product is RoHS compliant.
Applications
- This model can be used for the internal wiring and connection of computers, peripheral equipment,communication instrument, office equipment, etc.
- It can be connected to an insulation displacement type half-pitch connector.

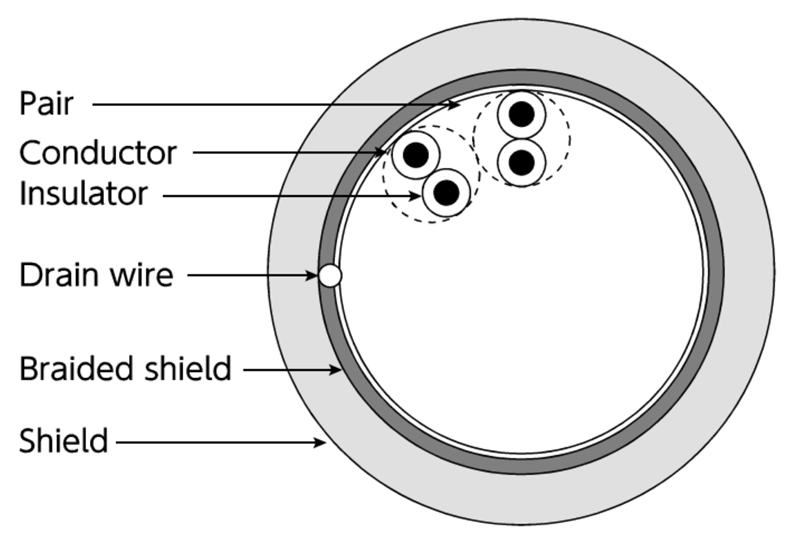

Shape
Specifications(Shielded)
| Conductor resistance Ω/km (20°C) | 222 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 1 or more |
| Dielectric Strength V/min | 500 |
| Capacitance pF/m *1 | Standard 98 |
| Characteristic impedance (Ω) *1 | Standard 50 |
| Propagation delay ns/m *1 | Standard 5.1 |
| Near-end crosstalk % *1 | Standard 4.5 |
| Flame Resistance | VW-1 |
- *1 : The measurement for capacitance, characteristic impedance, propagation delay and near-end crosstalk are all grounded except the measurement target pairs.
Product name notation
7/0.127 (a)P PE-(b) (21100)S *2*3
- *2 : Enter the number of pairs from the configuration table below in (a)and with/without braided shield (FR: Not shielded, SFR: Braided shield) in (b).
- *3 : S indicates the jacket color symbol (gray).
Configuration Table
| Number of pairs *5 | Number of cores | Conductor (pcs/mm) | Insulator | Insulator outer diameter (mm) | Jacket (shielded) *4 | Packaging unit | ||
|---|---|---|---|---|---|---|---|---|
| Material | Thickness (mm) | Outer diameter (mm) | ||||||
| 5 | 10 | 7/0.127 (AWG28) | Polyolefin | 0.58 | Flame-retarding polyolefin | 0.9 | 5.2 | 100 m (328 ft.) |
| 6 | 12 | 5.5 | ||||||
| 7 | 14 | 5.5 | ||||||
| 8 | 16 | 6.0 | ||||||
| 10 | 20 | 6.1 | ||||||
| 13 | 26 | 6.5 | ||||||
| 14 | 28 | 6.5 | ||||||
| 17 | 34 | 6.9 | ||||||
| 18 | 36 | 7.0 | ||||||
| 20 | 40 | 7.2 | ||||||
| 25 | 50 | 8.0 | ||||||
| 30 | 60 | 8.2 | ||||||
| 32 | 64 | 8.3 | ||||||
| 34 | 68 | 8.7 | ||||||
| 40 | 80 | 9.5 | ||||||
| 48 | 96 | 9.9 | ||||||
| 50 | 100 | 9.9 | ||||||
- *4 : Shielded models use a drain wire (10/0.12).
- *5 : This product is made to order for all numbers of pairs.
