Okiflex
OKIFLEX with jacket(UL STYLE NO.20266 80°C 150V)
Overview

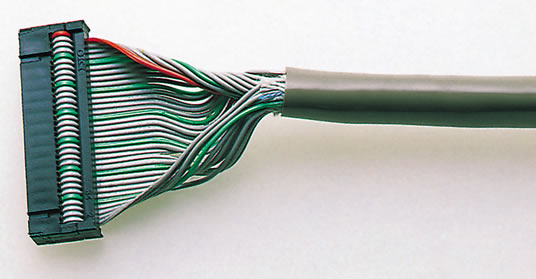

Assembled image picture
This product does not contain any connectors, only cable
Slit-type OKIFLEX is formed into a round shape and covered with a PVC jacket.
Ideal for wiring between devices and within complex enclosures. Shielded type is also available.
Features
- This model is a Slit type OKIFLEX rolled and coated with PVC and is suitable for the wiring between devices or racks.
- This model has a Slit type OKIFLEX inside, allowing immediate batch connector connection simply by cutting out the jacket. Branching is also supported.
- Thanks to the PVC coating, it can be directly pulled out from the rack, eliminating the need for an intermediate connector.
- A shielded type is also available.
- This product is environment-responsive.This product is RoHS compliant.
Applications
OKIFLEX is ideal for the internal wiring of computers, terminal equipment, communication instrument, controllers, office equipment, etc.

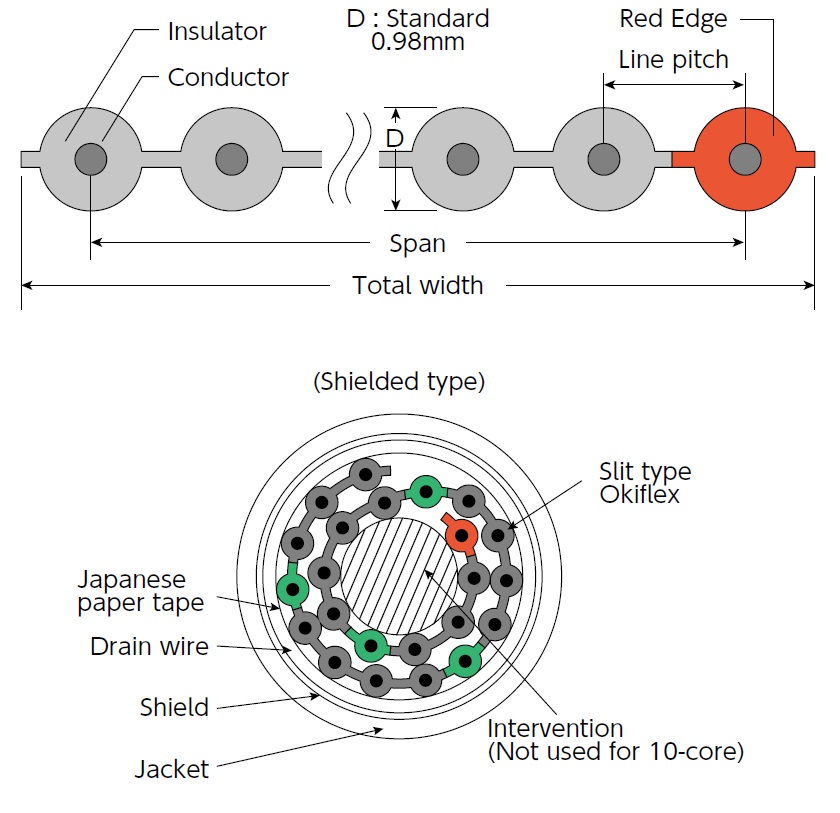

Shape
Specifications
| Not shielded | Shielded | |
|---|---|---|
| Conductor resistance Ω/km (20°C) | 222 or less | 222 or less |
| Insulation resistance MΩ-km (20°C) | 10 or more | 5 or more |
| Dielectric Strength V/min | 1500 | 1500 |
| Capacitance pF/m *1 | Standard 60 | Standard 77 |
| Characteristic impedance (Ω) *1 | Standard 97 | Standard 80 |
| Propagation delay ns/m *1 | Standard 5.2 | Standard 5.5 |
| Near-end crosstalk % *1 | Standard 4.0 | Standard 2.9 |
| VW-1 | VW-1 | VW-1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.
Product name
FLEX-S (a)-7/0.127 3030-(b)(20266)SB *2*3*4
- *2 : Enter the number of pairs in (a) and with/without shield in (b) as shown below.
V……Not shielded SV……Braided shield - *3 : 3030 indicates a non-fused part of 30 mm and fusion part of 30 mm of the Slit.
- *4 : SB indicates the jacket color symbol (warm gray).
Configuration Table
| Number of cores | Conductor (pcs/mm) | Total width (mm) | Jacket (shielded) *5 | Packaging unit | |
|---|---|---|---|---|---|
| Thickness (mm) | Outer diameter (mm) | ||||
| 10 | 7/0.127 (AWG28) |
12.7 | 0.9 | 6.6 | 100 m (328 ft.) per reel |
| 16 | 20.3 | 8.8 | |||
| 20 | 25.4 | 9.7 | |||
| 26 | 33.0 | 11.0 | |||
| 30 | 38.1 | 11.0 | |||
| 34 | 43.2 | 12.8 | |||
| 36 | 45.7 | 12.4 | |||
| 40 | 50.8 | 13.0 | |||
| 50 | 63.5 | 15.2 | |||
| 60 | 76.2 | 17.0 | |||
| 64 | 81.3 | 17.5 | |||
- *5 : Shielded models use a drain wire (10/0.12).
