Okiflex

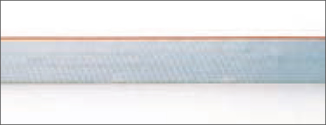

High density(0.635mm pitch) OKIFLEX(UL STYLE NO.20028 105°C 150V)

It is compatible with a 0.635mm (0.03 in.) pitch connector. Enables miniaturization and high density mounting of equipment. Available in two types, a bridge type and a slit type.

Features

To cater for the miniaturization need of devices, this model uses tin-plated copper wires (AWG30 (7/0.1mm)) for the conductor and is a half-pitch version (0.635 mm) of the conventional 1.27 mm pitch flat cables.
This model can easily be connected with a high-density IDS connector (1.27 mm pitch) using insulation displacement contacts, enabling smaller mounting pace and high-density wiring.
A bridge type and Slit types are available as for the conventional OKIFLEX Series.
This product is environment-responsive. This product is RoHS compliant.

Applications

OKIFLEX is ideal for the internal wiring of computers,terminal equipment, communication instrument,controllers, office equipment, etc.

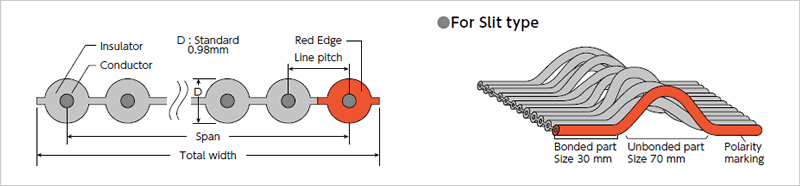

Shape

Specifications

Conductor resistance Ω/km (20℃)	358 or less
Insulation resistance MΩ-km (20℃)	1 or more
Dielectric Strength V/min	1500
Capacitance pF/m *1	Standard 80
Characteristic impedance (Ω) *1	Standard 76
Propagation delay ns/m *1	Standard 5.0
Near-end crosstalk % *1	Standard 2.8
Flame Resistance	VW-1

*1 :The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.

Product name/Type/Color scheme for core wires *2

FLEX-B2( )-7/0.1 20028 Bridge type Red side mark, All others = Gray
FLEX-S2( )-7/0.1 7030 20028 Slit type *3 Red side mark, All others = Gray

*2 :In the brackets of the above product names, enter the number of core from the Configuration Table.
*3 :7030 indicates unbonded part of 70mm and bonded part of 30mm.

Configuration table

Number of cores	Conductor (pcs/mm)	Insulator	Span (mm)	Total Width (mm)	Line pitch (mm)	Packaging unit
10	7/0.1 (AWG30)	Flexible polyvinyl chloride	5.72	6.35	0.635	61 m (200 ft.) per reel
16			9.53	10.16
20			12.07	12.70
24			14.61	15.24
26			15.88	16.51
30			18.42	19.05
34			20.96	21.59
40			24.77	25.40
50			31.12	31.75
60			37.47	38.10
64			40.01	40.64
68			42.55	43.18
80			50.17	50.80
100			62.87	63.50
