Okiflex
Bridge type OKIFLEX(UL STYLE NO.2651 105℃ 300V)
It is compatible with 1.27mm (0.05 in.) pitch connectors. This cable can be used for fixed wiring in a wide range of applications. Each core wire is bonded in the longitudinal direction.
Features
- The cable shape is vertically symmetrical and can be batch connected from either end.
- This product is environment-responsive.This product is RoHS compliant.
Applications
OKIFLEX is ideal for the internal wiring of computers, terminal equipment, communication instrument, controllers, office equipment, etc.
Specifications
| Conductor resistance Ω/km (20°C) | 222 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 100 or more |
| Dielectric Strength V/min | 2000 |
| Capacitance pF/m *1 | Standard 52 |
| Characteristic impedance (Ω) *1 | Standard 106 |
| Propagation delay ns/m *1 | Standard 5.0 |
| Near-end crosstalk % *1 | Standard 4.0 |
| Flame Resistance | VW-1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the G SG mode.

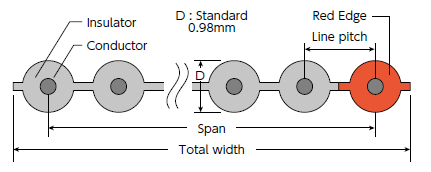

Shape
Product name /Type/Color/scheme for core wires *2
| FLEX-B( )-7/0.127 2651P *3 | Red-Gray-Gray-Gray-Green-…No.1 core wire = Red, No.5n core wire = Green, Others = Gray |
|---|---|
| FLEX-B2( )-7/0.127 2651P *3 | Red side mark, All others = Gray |
| FLEX-B4( )-7/0.127 2651 | Repetition of 10 colors(Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Black) |
- *2 : In the brackets of the above product names, enter the number of core from the Configuration Table.
- *3 : The B and B2 type products without the UL mark are made to order.
Configuration Table
| Number of cores |
Conductor (pcs / mm) |
Insulator | Span (mm) |
Total width (mm) |
Line pitch (mm) |
Packaging unit |
|---|---|---|---|---|---|---|
| 8 | 7/0.127 (AWG28) |
Flexible polyvinyl chloride |
8.89 | 10.2 | 1.27 | 61 m (200 ft.) per reel |
| 10 | 11.43 | 12.7 | ||||
| 14 | 16.51 | 17.8 | ||||
| 16 | 19.05 | 20.3 | ||||
| 20 | 24.13 | 25.4 | ||||
| 24 | 29.21 | 30.5 | ||||
| 25 | 30.48 | 31.8 | ||||
| 26 | 31.75 | 33.0 | ||||
| 30 | 36.83 | 38.1 | ||||
| 34 | 41.91 | 43.2 | ||||
| 36 | 44.45 | 45.7 | ||||
| 37 | 45.72 | 47.0 | ||||
| 40 | 49.53 | 50.8 | ||||
| 50 | 62.23 | 63.5 | ||||
| 60 | 74.93 | 76.2 | ||||
| 64 | 80.01 | 81.3 |
