Multi-core interface cables
Shielded OKIFLEX
Overview
It is compatible with 1.27mm (0.05 in.) pitch connectors.
Aluminum laminate is applied to block EMI noise.
Features
- This model uses bridge type OKIFLEX and can be batch connected from top or bottom.
- This model is shielded with aluminum laminate tape for EMI prevention.
- This product is environment-responsive.This product is RoHS compliant.
Applications
OKIFLEX is ideal for the internal wiring of computers,terminal equipment, communication instrument,controllers, office equipment, etc.

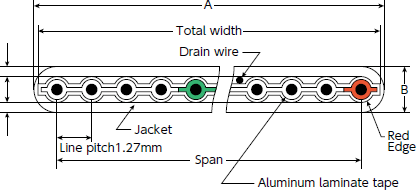

Shape
Characteristics example (shielded)
| Conductor resistance Ω/km (20°C) | 213 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 5 or more |
| Dielectric Strength V/min | 1500 |
| Capacitance pF/m *1 | Standard 153 |
| Characteristic impedance (Ω) *1 | Standard 43 |
| Propagation delay ns/m *1 | Standard 5.4 |
| Near-end crosstalk % *1 | Standard 3.1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the G SG mode.
Product name /Type/Color/scheme for core wires *2
FS-FLEX-B( )-7/0.127 ALV(30M)K *3 Red-Gray-Gray-Gray-Green...No. 1 core wire = Red, No. 5n core wire = Green, Other = Gray
- *2 : In the brackets of the above product names, enter the number of core from the Configuration Table.
- *3 : K indicates the jacket color symbol (black).
Configuration Table *4
| Number of cores |
Conductor (pcs/mm) |
Insulator | Span (mm) |
Total width (mm) |
Line pitch (mm) |
A (mm) |
B (mm) |
t (mm) |
Packaging unit |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 7/0.127 (AWG28) | Flexible polyvinyl chloride | 11.43 | 12.70 | 1.27 | 16.0 | 3.0 | 1.0 | 30.5m (100 ft.) per reel |
| 14 | 16.51 | 17.78 | 21.2 | ||||||
| 16 | 19.05 | 20.32 | 22.6 | ||||||
| 20 | 24.13 | 25.40 | 28.7 | ||||||
| 24 | 29.21 | 30.48 | 33.8 | ||||||
| 25 | 30.48 | 31.75 | 35.1 | ||||||
| 26 | 31.75 | 33.02 | 36.3 | ||||||
| 30 | 36.83 | 38.10 | 40.1 | ||||||
| 34 | 41.91 | 43.18 | 46.5 | ||||||
| 36 | 44.45 | 45.72 | 49.0 | ||||||
| 37 | 45.72 | 46.99 | 50.2 | ||||||
| 40 | 49.53 | 50.80 | 54.0 | ||||||
| 50 | 62.23 | 63.50 | 66.8 | ||||||
| 60 | 74.93 | 76.20 | 79.5 | ||||||
| 64 | 80.01 | 81.28 | 84.6 |
- *4 : This product is made to order for all numbers of cores.
