Okiflex
High-density(0.635mm pitch) Eco OKIFLEX(UL STYLE No.2734 80°C 30V)
The Eco OKIFLEX uses non-halogen insulator which is Eco-friendly.
Available in two types: a bridge type and a slit type.
Environmentally-friendly, non-halogen "Eco OKIFLEX". A high-density type supporting the miniaturization of devices.
Features
- Based on Oki Electric's proprietary technologies, this model uses non-PVC, non-halogen resin for its conductor and yet offers the same level of flexibility and electrical characteristics as the conventional models.
- This product is environment-responsive. This product is RoHS compliant.
- To cater for the miniaturization need of devices, this model uses tin-plated copper wires (AWG30 (7/0.1mm)) for the conductor and is a half-pitch version (0.635mm) of the conventional 1.27 mm pitch flat cables.
- This model can easily be connected with a high-density IDS connector (1.27 mm pitch) using insulation displacement contacts, enabling smaller mounting space and high-density wiring.
Applications
This model is ideal for the fixed internal wiring of computers, peripheral equipment, communication instrument, office equipment, etc.

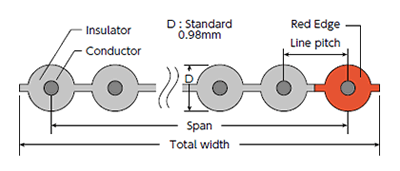

Shape
Specifications
| Conductor resistance Ω/km (20℃) | 358 or less |
|---|---|
| Insulation resistance MΩ-km (20℃) | 1 or more |
| Dielectric Strength V/min | 500 |
| Capacitance pF/m *1 | Standard 80 |
| Characteristic impedance (Ω) *1 | Standard 76 |
| Propagation delay ns/m *1 | Standard 5.0 |
| Near-end crosstalk % *1 | Standard 4.0 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.
Product name/Type/Color scheme for core wires *2
| FLEX-BN( )-7/0.1 2734 Bridge type Red-Gray-Gray-Gray-Green-Gray…No.1 core wire = Red, No.5 core wire = Green, Other = Gray |
|---|
- *2 : In the brackets of the above product names, enter the number of core from the Configuration Table.
Configuration Table *3
| Number of cores | Conductor (pcs/mm) |
Insulator | Span (mm) | Total Width (mm) | Line pitch (mm) | Packaging unit |
|---|---|---|---|---|---|---|
| 20 | 7/0.1 (AWG30) |
Flameretarding polyolefin |
12.1 | 12.7 | 0.635 | 61 m (200 ft.) per reel |
| 24 | 14.6 | 15.2 | ||||
| 30 | 18.4 | 19.1 | ||||
| 40 | 24.8 | 25.4 | ||||
| 50 | 31.1 | 31.8 | ||||
| 60 | 37.5 | 38.1 | ||||
| 80 | 50.2 | 50.8 | ||||
| 100 | 62.9 | 63.5 |
- *3 : This product is made to order for all numbers of cores/types.
