Okiflex
Slit type OKIFLEX(UL STYLE NO.2651 105℃ 300V)
It is compatible with 1.27mm (0.05 in.) pitch connectors.The structure consists of repeated bonded and non-bonded sections at regular intervals, making wiring easy.
Features
- This flat cable is optimum for fixed wiring inside a complicated console layout.
- The bonded parts and un-bonded parts of each core wire run in the longitudinal direction continuously at constant intervals.
Applications
OKIFLEX is ideal for the internal wiring of computers, terminal equipment, communication instrument, controllers, office equipment, etc.
Specifications
| Conductor resistance Ω/km (20°C) | 222 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 100 or more |
| Dielectric Strength V/min | 2000 |
| Capacitance pF/m *1 | Standard 51 |
| Characteristic impedance (Ω) *1 | Standard 108 |
| Propagation delay ns/m *1 | Standard 5.0 |
| Near-end crosstalk % *1 | Standard 4.0 |
| Flame Resistance | VW-1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the G SG mode.

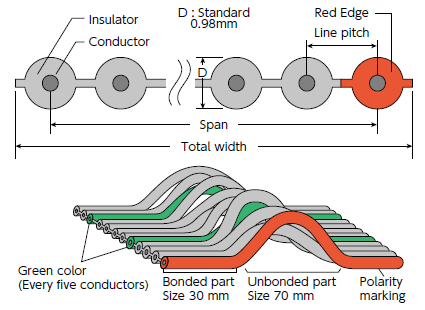

Shape
Note) The length of unbonded part of S4 type is 30 mm
Product name /Type/Color/scheme for core wires *2
| FLEX-S( )-7/0.127 7030 2651P *3 | Red-Gray-Gray-Gray-Green…No.1 core wire = Red, No.5n core wire = Green, Others = Gray |
|---|---|
| FLEX-S4( )-7/0.127 3030 2651 *3 | Repetition of 10 colors(Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Black) |
- *2 : In the brackets of the above product names, enter the number of core from the Configuration Table.
- *3 : 7030 indicates unbonded part of 70mm and bonded part of 30mm.3030 indicates unbonded part of 30 mm and bonded part of 30 mm.
Configuration Table
| Number of cores |
Conductor (pcs / mm) |
Insulator | Span (mm) |
Total width (mm) |
Line pitch (mm) |
Packaging unit |
|---|---|---|---|---|---|---|
| 8 | 7/0.127 (AWG28) |
Flexible polyvinyl chloride |
8.89 | 10.2 | 1.27 | 61 m(200 ft.) per reel |
| 10 | 11.43 | 12.7 | ||||
| 14 | 16.51 | 17.8 | ||||
| 16 | 19.05 | 20.3 | ||||
| 20 | 24.13 | 25.4 | ||||
| 24 | 29.21 | 30.5 | ||||
| 25 | 30.48 | 31.8 | ||||
| 26 | 31.75 | 33.0 | ||||
| 30 | 36.83 | 38.1 | ||||
| 34 | 41.91 | 43.2 | ||||
| 36 | 44.45 | 45.7 | ||||
| 37 | 45.72 | 47.0 | ||||
| 40 | 49.53 | 50.8 | ||||
| 50 | 62.23 | 63.5 | ||||
| 60 | 74.93 | 76.2 | ||||
| 64 | 80.01 | 81.3 |
