Multipair Cable

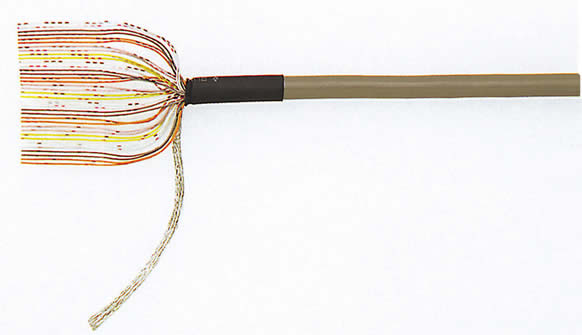

Small-diameter,High-density OKIFLEX(UL STYLE NO.20276 80°C 30V)
Overview
Inside the PVC jacket, the high-density Slit-type OKIFLEX is folded into an S-shape and arranged in a circular form, making it ideal for wiring in complex enclosures and between devices. A shielded type is also available.
Features
- This model features a smaller diameter compared to conventional interface cables.
- Cross-linked PVC is used for conductor to compensate for the deterioration of strength as result of thinner structure.
- It can be connected to an insulation displacement type half-pitch connector using AWG28 (7/0.127).
- The core wires are easily identifiable by their dot marks.
- Various product types are available according to number of connector poles.
- This product is environment-responsive.This product is RoHS compliant.
Applications
This model is ideal for the internal wiring of computers,terminal equipment, communication instrument, controllers, office equipment, etc.
as well as for the wiring connections between devices.

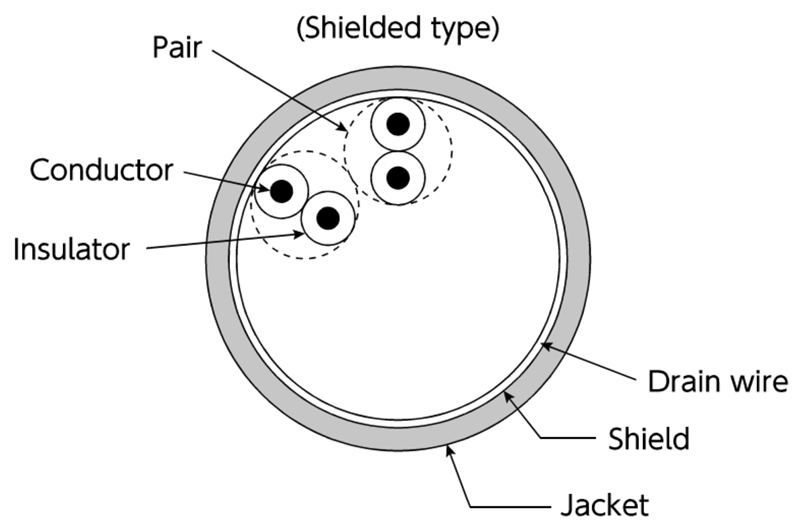

Shape
Characteristics example (shielded)
| Conductor resistance Ω/km (20°C) | 222 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 1 or more |
| Dielectric Strength V/min | 500 |
| Capacitance pF/m *1 | Standard 128 |
| Characteristic impedance (Ω) *1 | Standard 50 |
| Propagation delay ns/m *1 | Standard 5.1 |
| Near-end crosstalk % *1 | Standard 4.5 |
| Flame Resistance | VW-1 |
- *1 : The measurement for capacitance, characteristic impedance, propagation delay and near-end crosstalk are all grounded except the measurement target pairs.
Product name notation
7/0.127 (a)P VX10-(b)(20276)SB *2*3
- *2 : Enter the number of pairs in (a) and with/without shield in (b) as shown below.
V...Not shielded SV... Braided shield A dual-shield type is also available upon request. - *3 : SB indicates the jacket color symbol (warm gray).
Type configuration table
| Number of pairs | Number of cores | Conductor (pcs/mm) | Insulator | Insulator outer diameter (mm) | Jacket (shielded) *4 | Packaging unit | |
|---|---|---|---|---|---|---|---|
| 5 | 10 | 7/0.127 (AWG28) | Cross- linking PVC | 0.58 | 0.9 | 5.2 | 100 m (328 ft.) |
| 6 | 12 | 5.5 | |||||
| 7 | 14 | 5.5 | |||||
| 10 | 20 | 6.1 | |||||
| 13 | 26 | 6.5 | |||||
| 14 | 28 | 6.5 | |||||
| 18 | 36 | 7.0 | |||||
| 20 | 40 | 7.2 | |||||
| 25 | 50 | 8.0 | |||||
| 30 | 60 | 8.2 | |||||
| 32 | 64 | 8.3 | |||||
| 34 | 68 | 8.7 | |||||
| 40 | 80 | 9.5 | |||||
| 48 | 96 | 9.9 | |||||
| 50 | 100 | 9.9 | |||||
- *4 : Shielded models use a drain wire (10/0.12).
