Multipair Cable
EMI OKIFLEX(Type I : UL STYLE NO. 2935 80°C 300V Type II : UL STYLE NO. 2384 60°C 30V)
Overview
The cable type OKIFLEX features aluminum polyester tape and braided double shielding to block EMI noise.
Features
- This model has a dual shield (aluminum laminate tape and braiding) for reliable EMI prevention.
- This model can be connected to an insulation displacement type D sub-miniature and ribbon type connectors.
- Assembly (batch insulation displacement) with the specified connector is available.
- This product is environment-responsive.This product is RoHS compliant.

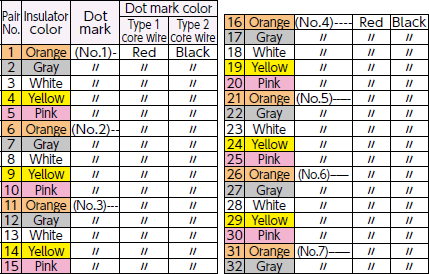

Core wire identification and arrangement
Applications
This model is ideal for the wiring connections between computers, terminal equipment, communication instrument, controllers, office equipment, etc.
Specifications
| Type I | Type II | |
|---|---|---|
| Conductor resistance Ω/km (20°C) | 222 or less | 222 or less |
| Insulation resistance MΩ-km (20°C) | 1 or more | 1 or more |
| Dielectric Strength V/min | 2000 | 500 |
| Capacitance pF/m *1 | Standard 102 | Standard 105 |
| Characteristic impedance (Ω) *1 | Standard 70 | Standard 60 |
| Propagation delay ns/m *1 | Standard 5.7 | Standard 5.3 |
| Near-end crosstalk % *1 | Standard 4.6 | Standard 4.6 |
| Flame Resistance | VW-1 | VW-1 |
- *1 : The measurement for capacitance, characteristic impedance, propagation delay and near-end crosstalk are all grounded except the measurement target pairs.

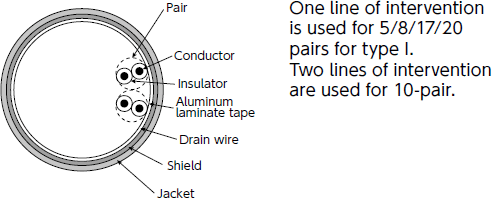

Shape
Product name notation *2
| Type I (Standard type) | EMIFLEX- I ( )P SB |
|---|---|
| Type II (Small-diameter type) | EMIFLEX-2 ( )P SB |
- *2 : In the brackets, enter the number of pairs from the product type configuration table below.
Configuration Table
| Number of pairs | Conductor | Type I | Type II | ||||
|---|---|---|---|---|---|---|---|
| Insulator outer diameter (mm) |
Jacket outer diameter (shielded) (mm) |
Packaging unit | Insulator outer diameter (mm) |
Jacket outer diameter (shielded) (mm) |
Packaging unit | ||
| 4 | 7/0.127 (AWG28) | 1.10 | 6.5 | 100 m (328 ft.) |
0.80 | 5.8 | 100 m (328 ft.) |
| 5 | 7.2 | 6.1 | |||||
| 6 | 7.9 | 6.5 | |||||
| 7 | 7.9 | 6.5 | |||||
| 8 | 8.7 | 7.2 | |||||
| 10 | 9.5 | 7.3 | |||||
| 13 | 10.0 | 8.1 | |||||
| 15 | 10.8 | 8.3 | |||||
| 17 | 11.1 | 8.7 | |||||
| 18 | 11.1 | 8.8 | |||||
| 20 | 11.4 | 9.2 | |||||
| 25 | 13.0 | 10.2 | |||||
| 30 | 13.4 | 10.5 | |||||
| 32 | 13.6 | 10.6 | |||||
