Okiflex



Twisted-pair-type OKIFLEX(UL STYLE NO. 20591 80°C 150V)

It is compatible with 1.27mm (0.05In.) pitch connectors. This is a flat cable which consists of twisted pairs.

Features

  • This model offers excellent noise tolerance and crosstalk properties, making it ideal for the wiring of high-speed signal circuits.
  • This model can be batch connected using a U contact, offering excellent workability and error free wiring.
  • This product is environment-responsive.This product is RoHS compliant.

Applications

OKIFLEX is ideal for the internal wiring of computers,terminal equipment,communication instrument,controllers, office equipment, etc.

Specifications

Conductor resistance Ω/km (20°C) 222 or less
Insulation resistance MΩ-km (20°C) 100 or more
Dielectric Strength V/min 1500
Capacitance pF/m *1 Standard 44
Characteristic impedance (Ω) *1 Standard 140
Propagation delay ns/m *1 Standard 5.0
Near-end crosstalk % *1 Standard 4.8
  • *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the GSG mode.

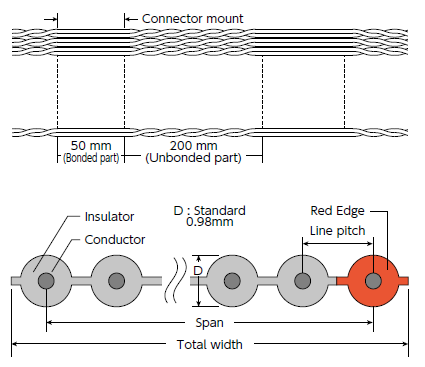

Shape

Shape

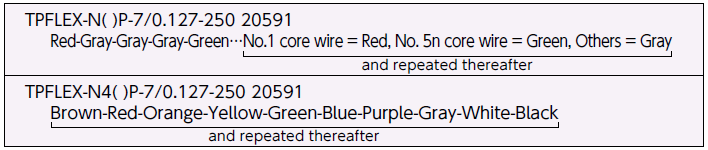

Product name /Type/Color/scheme for core wires *2

Shape

  • *2 : In the brackets of the above product names, enter the number of pairs from the Configuration Table.

Configuration Table

Number of
pairs		 Number of
cores		 Conductor
(pcs / mm)		 Insulator
Span (mm)		 Span
](mm)		 Total width
(mm)		 Line pitch
(mm)		 Packaging unit
5 10 7/0.127
(AWG28)		 Flexible
polyvinyl
chloride		 11.43 12.7 1.27 30.5 m
(100 ft.)
per reel
8 16 19.05 20.3
10 20 24.13 25.4
13 26 31.75 33.0
15 30 36.83 38.1
17 34 41.91 43.2
20 40 49.53 50.8
25 50 62.23 63.5
30 60 74.93 76.2
32 64 80.01 81.3
