Okiflex
High density OKIFLEX with structure(UL STYLE NO.20266 80°C 150V)
Overview

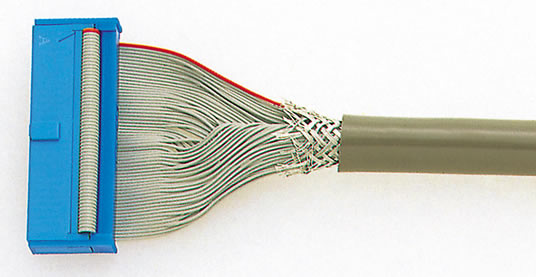

Terminal treatment example
Inside the PVC jacket, the high-density Slit-type OKIFLEX is folded into an S-shape and arranged in a circular form, making it ideal for wiring in complex enclosures and between devices. A shielded type is also available.
Features
- This model features high-density Slit type OKIFLEX foamed in round shape and treated with PVC jacket. Models with braided shield and dual shield (braided shield + aluminum/polyester laminate tape) are available as options.
- This model can be bent flexibly in all directions thanks to its round shape and cut at the desired length and easily be batch connected with a high-density IDS connector using insulation displacement contacts.
- This product is environment-responsive. This product is RoHS compliant.
Applications
This model is ideal for the internal wiring of computers,terminal equipment, communication instrument,controllers, office equipment, etc. as well as for the wiring connections between devices.

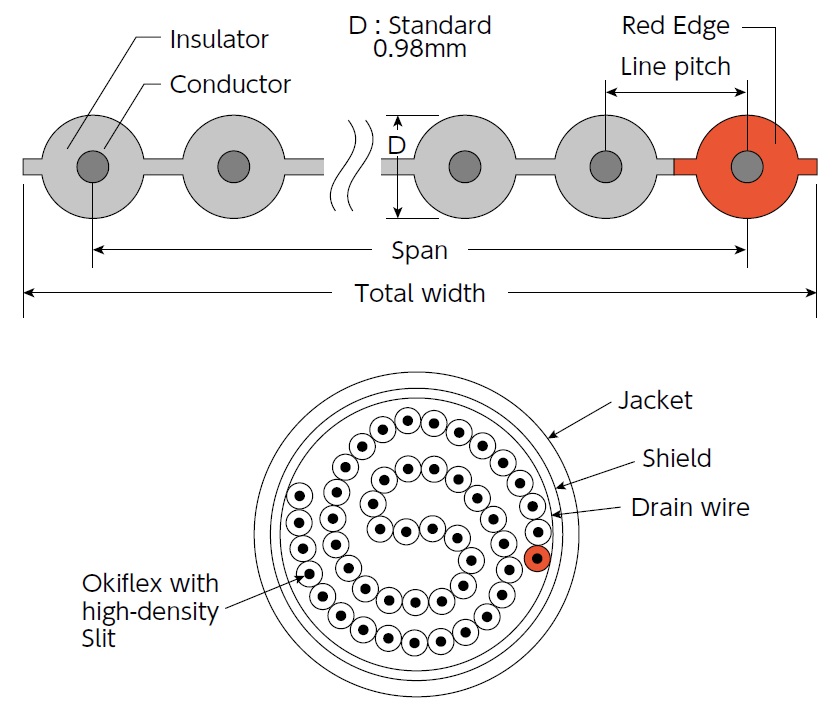

Shape
Specifications(Shielded)
| Conductor resistance Ω/km (20°C) | 358 or less |
|---|---|
| Insulation resistance MΩ-km (20°C) | 1 or more |
| Dielectric Strength V/min | 1500 |
| Capacitance pF/m *1 | Standard 97 |
| Characteristic impedance (Ω) *1 | Standard 64 |
| Propagation delay ns/m *1 | Standard 5.3 |
| Near-end crosstalk % *1 | Standard 2.4 |
| Flame Resistance | VW-1 |
- *1 : The measurement methods for capacitance, characteristic impedance, propagation delay and near-end crosstalk are based on the G SG mode. The shield and drain wire are grounded for the shielded models.
Product name notation
SFX-S2 (a)-7/0.1 3030-(b)(20266)SB *2*3*4
- *2 : Enter the number of pairs in (a) and with/without shield in (b) as shown below.
V……Not shielded SV……Braided shield - *3 : 3030 indicates a non-fused part of 30 mm and fusion part of 30 mm of the Slit.
- *4 : SB indicates the jacket color symbol (warm gray).
Configuration Table *5
| Number of cores | Conductor (pcs/mm) | Insulator | Span (mm) | Total width (mm) | Jacket (shielded) *6 | Packaging unit | |
|---|---|---|---|---|---|---|---|
| Thickness (mm) | Outer diameter (mm) | ||||||
| 20 | 7/0.1 (AWG30) |
Flexible polyvinyl chloride | 12.07 | 12.70 | 1.0 | 6.3 | 61 m (200 ft.) per reel |
| 26 | 15.88 | 16.51 | 7.0 | ||||
| 34 | 20.96 | 21.59 | 7.3 | ||||
| 40 | 24.77 | 25.40 | 8.0 | ||||
| 50 | 31.12 | 31.75 | 8.5 | ||||
| 60 | 37.47 | 38.10 | 9.6 | ||||
| 64 | 40.01 | 40.64 | 10.1 | ||||
| 80 | 50.17 | 50.80 | 10.6 | ||||
| 100 | 62.87 | 63.50 | 11.0 | ||||
- *5 : This product is made to order for all numbers of cores.
- *6 : Shielded models use a drain wire (10/0.12).
