ORM Cable Series (#0284) (UL20276)

UL STYLE NO.20276 80degrees 30V

Features

ORM Cable Series (#0284)

  • These cables can be connected using a half pitch connector.
  • They also conform to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) Directive.

Applications

  • Making connection between a machine tool and its NC unit (for fixed wiring)

Conformity and safety standard

  • UL Style No.20276
Item Contents
Conductor Classification Tin-plated soft copper stranded wire
Structure (core wires/mm) 7/0.128
Insulation Classification Cross-linked PV
Color Orange,Gray,White,Yellow,Pink
Identification Dot mark
O.D.(mm) Standard 0.58
Braided shield Classification Tin-plated soft copper wire
Drain wire Classification Tin-plated soft copper stranded wire
Structure (core wires/mm) 10/0.12
Sheath Classification Heat resistant and oil resistant PVC
Color Black
O.D.(mm) Standard 6.2
Marking OKI ELECTRIC CABLE / AWM 20276 80C 30V VW-1
Completed item Standard length(m) 200
Packed form Bundle winding
Estimated weight (kg/km) 60

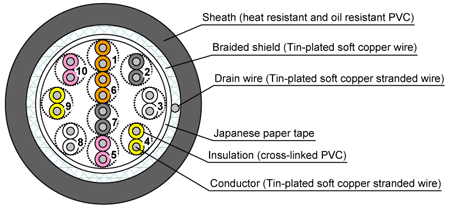

Cable cross-sectional diagram Cable cross-sectional diagram

Performance

Item Contents
Electrical characteristics Conductor resistance 222Ω/km or less (20degrees)
Insulation resistance 10mΩ-km or more (20degrees)
Withstand voltage AC500V-min
Completed item UL performance Conforms to UL style No.20276
Ratings 80degrees 30V
Fire-retardancy VW-1

Core wire color identification

Twisted-pair wire No. 1 2 3 4 5
Core wire No. 1 2 3 4 5 6 7 8 9 10
Insulation color Orange Orange Gray Gray White White Yellow Yellow Pink Pink
Dot mark color Red Black Red Black Red Black Red Black Red Black
Dot mark Dot mark, Red Dot mark, Black Dot mark, Red Dot mark, Black Dot mark, Red Dot mark, Black Dot mark, Red Dot mark, Black Dot mark, Red Dot mark, Black
Twisted-pair wire No. 6 7 8 9 10
Core wire No. 11 12 13 14 15 16 17 18 19 20
Insulation color Orange Orange Gray Gray White White Yellow Yellow Pink Pink
Dot mark color Red Black Red Black Red Black Red Black Red Black
Dot mark Dot mark, Red Dot mark, Red Dot mark, Black Dot mark, Black Dot mark, Red Dot mark, Red Dot mark, Black Dot mark, Black Dot mark, Red Dot mark, Red Dot mark, Black Dot mark, Black Dot mark, Red Dot mark, Red Dot mark, Black Dot mark, Black Dot mark, Red Dot mark, Red Dot mark, Black Dot mark, Black
