ORM Cable Series (#0491) (UL20276)
UL Style NO.20276 80degrees 30V
Features
- Structure comprising of this conductor and ETFE insulator enables the use on moving parts.
- This product is environmentally friendly. It also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) regulations.
Applications
- Servo motor signaling (for fixed wiring)
Conformity and safety standard
- UL style No.20276
Construction
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Pair wire B | ||
| Number of core (twisted pair) wires | 5 cores | 1 pairs | |
| Conductor | Classification | Tin-plated soft copper stranded wire | Tin-plated soft copper stranded wire |
| Structure (core wires/mm) | 20/0.18 | 7/0.18 | |
| Insulation | Classification | Heat resistant PVC | Heat resistant PVC |
| Color | Green, Yellow | Orange | |
| O.D. (mm) | Standard 1.43 | Standard 0.94 | |
| Twisted-pair wires | Classification | – | Orange 1st type core wire (Dot mark: red) and 2nd type core wire (Dot mark: black) twisted each other |
| Braided shield | Classification | Tin-plated copper stranded wire | |
| Drain wire | Classification | Tin-plated soft copper stranded wire | |
| Structure (core wires/mm) |
7/0.18 | ||
| Sheath | Classification | Heat resistant and oil resistant PVC | |
| Color | Black | ||
| O.D.(mm) | Standard 6.3 | ||
| Marking | OKI ELECTRIC CABLE / AWM 20276 80C 30V VW-1 | ||
| Completed item | Standard length (m) | 100 | |
| Package | Bundle winding | ||
| Estimated weight (kg/km) | 70 | ||

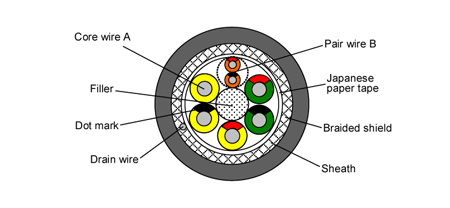

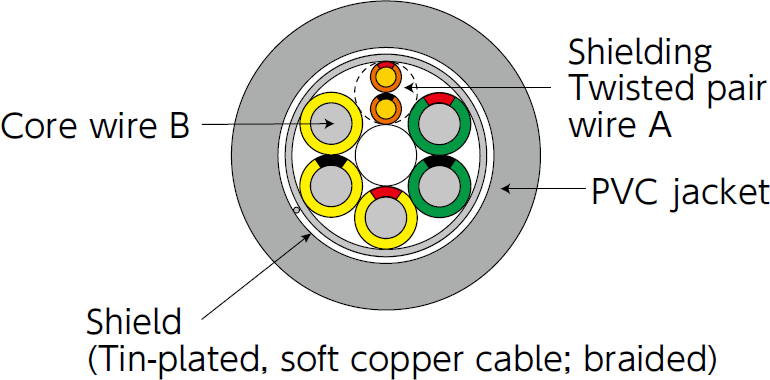

| Cable cross-sectional diagram |  |
||
Performance
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Pair wire B | ||
| Electrical characteristics | Conductor resistance | 39 Ω /km or less (20degrees) | 110 Ω /km or less (20degrees) |
| Insulation resistance | 10M Ω /km + (20degrees) | 10M Ω /km or more (20degrees) | |
| Withstand voltage | AC500V-min | AC500V-min | |
| Completed item performance | UL performance | UL style No.20276 | |
| Ratings | 80degrees 30V | ||
| Flame resistance | VW-1 | ||
Core wire color identification
Core wire A
| Insulation color | Yellow | Yellow | Yellow | Green | Green |
|---|---|---|---|---|---|
| Dot mark | N/A | Red | Black | Red | Black |
Core wire B
| Twisted-pair wire No. | Insulation color | Dot mark color | |
|---|---|---|---|
| 1st type core wire | 2nd type core wire | ||
| 1 | Orange | Red | Black |
