FA/Robot cable

VEYOR cable / Spiral cable

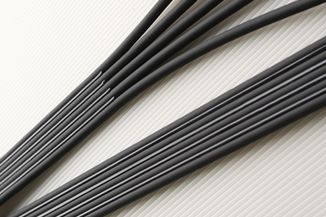

These are customized cables in which cables for moving parts and air tubes are bonded in parallel, offering excellent sliding performance.

Combines suppleness and high-sliding properties.
The cable bonding prevents them from tangling.
Depending on the length, the cables can slide without a cable carrier.

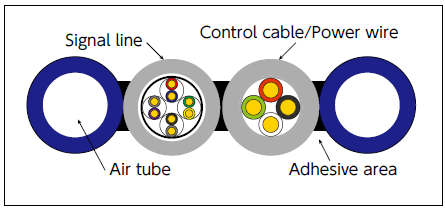

Cables with different outer diameters can be bonded together, as well as air tubes and optical cables.

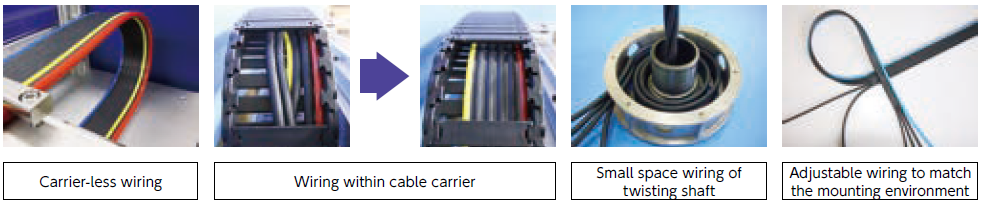

The adhesive and non-adhesive surfaces can be freely set, enabling easy cable splitting and bending during installation.

Cable	According to your specifications. Adhesion of cables with different outer diameters is available. Cables with PVC and urethane coatings are available. Support for combinations with tubes and optical fibers in place of cables is available.
Adhesive	Elastomer-type adhesive
Number of adhesions	Up to maximum width of 150 mm
Adhesion length (mm)	Maximum 5500 (Consult us separately for lengths exceeding this.)

When you order from the following cable and tube combinations, we offer quick delivery starting from a single cable.

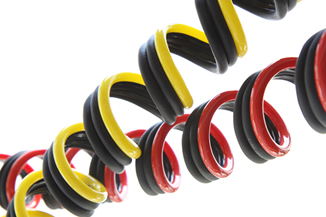

These are cables for moving parts and VEYOR-CABLES formed into a spiral. They are suitable for applications requiring telescopic motion.

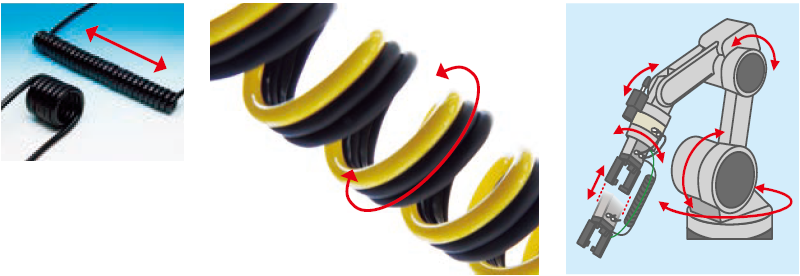

Can be mounted in small spaces of flexible sections, twisting sections, and bending sections of moving equipment.
Using movable cable with excellent durability results in excellent durability.
The strength of impact resilience can also be adjusted to meet your demands. Including cables, we offer specifications that match your purposes.
Processing using adhesion-processed VEYOR-CABLE is also available.
Support requests for terminal processing, such as attaching connectors, is also available.

Cable	According to your specifications. A range from robot cables to flexible cable and adhesion-processed VEYOR-CABLE of custom designs is also available.

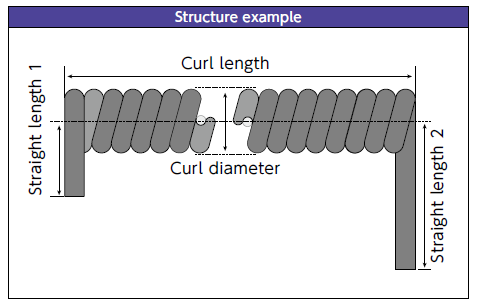

Curl length (mm)	500 or less *Consult us for lengths exceeding 500.
Curl diameter (mm)	10 to 60 *Depends on the cable diameter and your desired flexibility strength.
Straight length (m)	Can be configured freely.

Flexible sections, twisting sections, and bending sections of industrial machines and robots.
Measures to improve the movement durability of cables in flexible sections.

Inquiries regarding materials, consultations, and technology: Inquiry from Web: Inquiry form
