ORM Cable Series (#0481) (UL20276)
UL Style NO.20276 80degrees 30V
Features
- Structure comprising of this conductor and ETFE insulator enables the use on moving parts.
- This product is environmentally friendly. It also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) regulations.
Applications
- Servo motor signaling (for fixed wiring)
Conformity and safety standard
- UL style No.20276
Construction
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Core wire B | ||
| Number of core wires (core) | 2 (:1 pair) | 5 | |
| Conductor | Classification | Tin-plated soft copper stranded wire | Tin-plated soft copper stranded wire |
| Structure (core wires/mm) | 7/0.18 | 12/0.18 | |
| Insulation | Classification | Heat resistant PVC | Heat resistant PVC |
| Color | Orange | Green, Yellow | |
| O.D.(mm) | Standard 1.00 | Standard 1.25 | |
| Braided shield | Classification | Tin-plated soft copper wire | |
| Drain wire | Classification | Tin-plated soft copper stranded wire | |
| Structure (core wires/mm) |
7/0.18 | ||
| Sheath | Classification | Heat resistant and oil resistant PVC | |
| Color | Black | ||
| O.D.(mm) | Standard 6.4 | ||
| Marking | OKI ELECTRIC CABLE / AWM 20276 80C 30V VW-1 | ||
| Completed item | Standard length (m) | 200 | |
| Package | Bundle winding | ||
| Estimated weight (kg/km) | 60 | ||

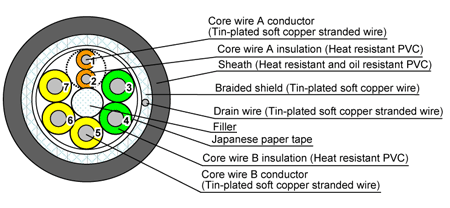

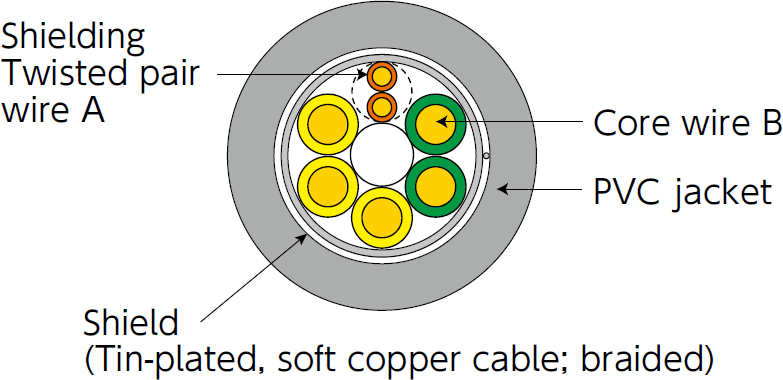

| Cable cross-sectional diagram |  |
||
Performance
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Core wire B | ||
| Electrical characteristics | Conductor resistance | 110 Ω /km or less (20degrees) | 66 Ω /km or less (20degrees) |
| Insulation resistance | 15M Ω /km or more (20degrees) | 15M Ω /km or more (20degrees) | |
| Withstand voltage | AC500V-min | AC500V-min | |
| Completed item performance | UL performance | UL style No.20276 | |
| Ratings | 80degrees 30V | ||
| Fire-retardancy | VW-1 | ||
Core wire color identification
Core wire A
| Core wire A | Core wire B | ||||||
|---|---|---|---|---|---|---|---|
| Twisted-pair wire No. | 1 | — | |||||
| Core wire No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| Insulation color | Orange | Orange | Green | Green | Yellow | Yellow | Yellow |
| Dot mark color | red | Black | red | Black | red | Black | — |
| Dot mark |
 (Continuous) |
 (Continuous) |
(Continuous) |
(Continuous) |
(Continuous) |
(Continuous) |
|
