ORM Cable Series (#0317) (UL20276)
UL STYLE NO.20276 80degrees 30V
Features
- Structure comprising of this conductor and ETFE insulator enables the use on moving parts.
- This product is environmentally friendly and also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) Directive.
Applications
- Servo motor signaling (for moving parts)
Conformity and safety standard
- UL Style No.20276
Construction
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Core wire B | ||
| Number of cores (twisted pair) wires | 6 cores | 3 pairs | |
| Conductor | Classification | Tin-plated soft copper wire | Tin-plated soft copper stranded wire |
| Structure (core wires/mm) | 7/38/0.05 | 40/0.08 | |
| Insulation | Classification | ETFT | ETFT |
| Color | Red, Black | Red, Black, White | |
| O.D.(mm) | Standard 1.50 | Standard 1.00 | |
| Twisted pair wire | Classification | — | Red× Black, Red× White, White×Black |
| O.D.(mm) | 2.0 | ||
| Braided shield | Classification | Tin-plated soft copper wire | |
| Drain wire | Classification | Tin-plated soft copper stranded wire | |
| Structure (core wires/mm) | 60/0.08 | ||
| Sheath | Classification | Heat resistant and oil resistant PVC | |
| Color | Black | ||
| O.D.(mm) | Standard 9.0 | ||
| Marking | OKI ELECTRIC CABLE / AWM 20276 80C 30V VW-1 | ||
| Completed item | Standard length(m) | 100 | |
| Package | Bundle winding | ||
| Estimated weight (kg/km) | 120 | ||

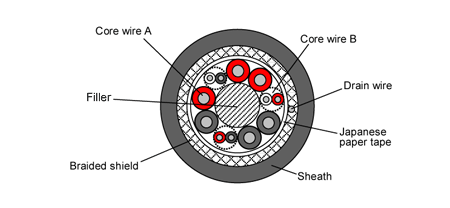

| Cable cross-sectional diagram |  |
||
Performance
| Item | Contents | ||
|---|---|---|---|
| Core wire A | Core wire B | ||
| Electrical characteristics | Conductor resistance | 36Ω/km or less (20degrees) | 98Ω/km or less (20degrees) |
| Insulation resistance | 10MΩ/km or more (20degrees) | 10MΩ/km or more (20degrees) | |
| Withstand voltage | AC500V-min | AC500V-min | |
| Completed item performance | UL performance | UL style No.20276 | |
| Ratings | 80degrees 30V | ||
| Flame resistance | VW-1 | ||

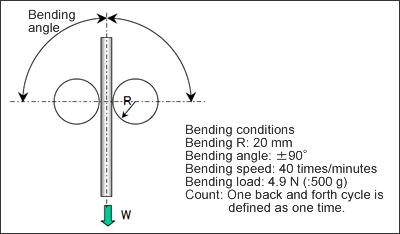

Bending performance
| Test sample | Number of bend until breakage |
|---|---|
| ORM(#0317) | At least 1million times*1 |
- *1 : The bending performance is the measured value. It is not a guarantee value.
This cable has at least the same performance as that of the certified cables used by the FA equipment manufacturers.
