ORM Cable Series (#0368) (UL20276)

UL STYLE NO.20276 80degrees 30V

ORM Cable Series (#0368)

Structure comprising of this conductor and ETFE insulator enables the use on moving parts.
This product is environmentally friendly and also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) Directive.

Item		Contents
Item		Core wire A	Core wire B
Number of core (pair) wires		6 cores	5 pairs
Conductor	Classification	Tin-plated soft copper wire	Tin-plated soft copper stranded wire
Conductor	Structure (core wires/mm)	100/0.08	40/0.08
Insulation	Classification	Polyethylene	Polyethylene
	Color	Red, Black	Yellow, Gray, Orange, Brown, Green, White
	O.D.(mm)	Standard 1.50	Standard 1.00
Twisted pair wire	Classification	—	Yellow×White, Gray×White, Orange×White, Brown×White, Green×White
Braided shield	Classification	Tin-plated soft copper wire
Drain wire	Classification	Tin-plated soft copper stranded wire
Drain wire	Structure (core wires/mm)	12/0.18
Sheath	Classification	Heat resistant and oil resistant PVC
	Color	Black
	O.D.(mm)	Standard 7.4
	Marking	OKI ELECTRIC CABLE / AWM 20276 80C 30V VW-1
Completed item	Standard length(m)	100
	Package	Bundle winding
	Estimated weight (kg/km)	110

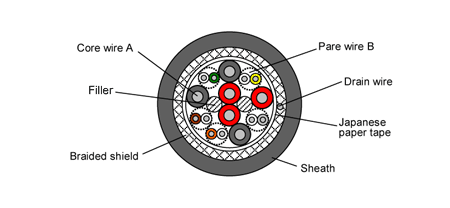

Cable cross-sectional diagram

Item		Contents
Item		Core wire A	Core wire B
Electrical characteristics	Conductor resistance	38Ω/km or less (20degrees)	93Ω/km or less (20degrees)
	Insulation resistance	10MΩ/km or more (20degrees)	10MΩ/km or more (20degrees)
	Withstand voltage	AC500V-min	AC500V-min
Completed item performance	UL performance	UL style No.20276
	Ratings	80degrees 30V
	Flame resistance	VW-1

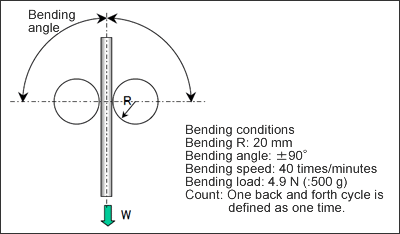

Test sample	Number of bend until breakage
ORM(#0368)	At least 400,0000 times*1

*1 : The bending performance is the measured value. It is not a guarantee value.

This cable has at least the same performance as that of the certified cables used by the FA equipment manufacturers.
