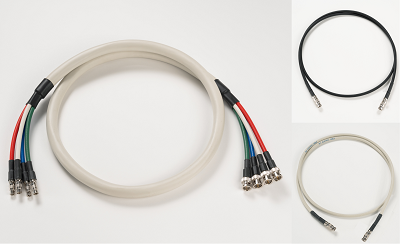

CoaXPress Cable
Features
- Realizing high-speed transmission of up to 12.5 Gbps per lane,and maximum transmission speed of 50 Gbps with 4-lane support.
- Maximum transmission distance is 20m for fixed wiring and 9m for movable wiring.
- Supported connector types are BNC and micro BNC.
- Sliding durability: 10 million times or more; Twisting durability: 300,000 times or more.（See spec chart for details）
Prouduct name
CXP12 - ① - ② - ③ - ④
- ①Number of cores：
- 1 core：1C 4 cores：4C
- ②Cable type
- for Fixed wiring： High-Flex & Slim：K Standard：H, Long distance：L
for Movable wiring： Standard：KH, High durability：RA - ③Connector symbol
- for BNC on both ends：BSBS, Micro-BNC／BNC: MBSBS, and Micro-BNC on both ends: MBSMBS
- ④Cable length:
- ex. 5m: 050, 10m: 100
Specifications
| Cable | Number of cores | 1 - core | 4 - cores | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cable type（※1） | Fixed wiring | Movable wiring | Fixed wiring | Movable wiring | ||||||
| Standard (H) | Long distance (L) | High-flex & slim（K） | Standard (KH) | High durability (RA) | Standard (H) | Long distance (L) | Standard (KH) | High durability (RA) | ||
| UL style No | 10043 | 10756 | 10043 | 10043 | 10756 | 20276 | ||||
| Rated temp.／volt | 80°C／30V | |||||||||
| Jacket material | Heat-resistant PVC | |||||||||
| color | Gray | Black | Gray | Black | ||||||
| Outer diameter（Standard） | 3.9mm | 7.0mm | 3.7mm | 4.6mm | 6.8mm | 9.2mm | 17.5mm | 11.4mm | 16.8mm | |
| Complete product | Connector type | BNC or Micro-BNC | Micro-BNC | BNC or Micro-BNC | ||||||
- ※1 （）indicates cable type.
Performance
| Number of cores | 1 - core | 4 - cores | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Cable type | Fixed wiring | Movable wiring | Fixed wiring | Movable wiring | ||||||
| Standard (H) | Long distance (L) | High-flex & slim（K） | Standard (KH) | High durability (RA) | Standard (H) | Long distance (L) | Standard (KH) | High durability (RA) | ||
| Transmission Class | CXP-12 | |||||||||
| Maximum transmission speed | 12.5Gbps | 50Gbps | ||||||||
| Maximum transmission distance | 10m | 20m | 7m | 9m | 10m | 10m | 20m | 9m | 10m | |
| Movement performance（※2） | Sliding bending | ― | 50 million times or more （Bend radius R=50mm） |
10 million times or more （Bend radius R=50mm） |
― | 10 million times or more （Bend radius R=100mm） |
||||
| Twisting | ― | ― | 300 thousand times or more（±180°Span:500mm） | ― | ||||||
| Swinging | ― | ― | 300 thousand times or more（20 mm radius） | ― | 300 thousand times or more（50 mm radius） | |||||
- ※2 OKI Electric Cable's test conditions and test methods are used. These data are for reference only and are not guaranteed values.
Operating environment
| Number of cores | 1 - core | 4 - cores | |||||||
|---|---|---|---|---|---|---|---|---|---|
Cable type |
Fixed wiring | Movable wiring | Fixed wiring | Movable wiring | |||||
| Standard (H) | Long distance (L) | High-flex & slim (K) | Standard (KH) | High durability (RA) | Standard (H) | Long distance (L) | Standard (KH) | High durability (RA) | |
| Operating temperature range | -10～60°C | ||||||||
| Applicable location | Fixed part | Fixed or moving part | Fixed part | Fixed or moving part | |||||
| Minimum bending radius （Recommended value）（※3） |
20mm | 30mm | 15mm | 20mm | 30mm | 40mm | 70mm | 50mm | 70mm |
- ※3 Minimum bending radius is recommended to ensure stable operation.
| Transmission class | CXP-12 | CXP-10 | CXP-6 | CXP-5 | CXP-3 | CXP-2 | CXP-1 | |
|---|---|---|---|---|---|---|---|---|
Maximum transmission distance（m）（※4） |
Fixed wiring |
20 | 27 | 30 | 43 | 77 | 86 | 108 |
| Movable wiring |
10 | 14 | 15 | 23 | 38 | 42 | 44 | |
- ※4 Maximum transmission distance should be evaluated by user as it varies depending on equipment and operating conditions.
Configuration diagram
1-core

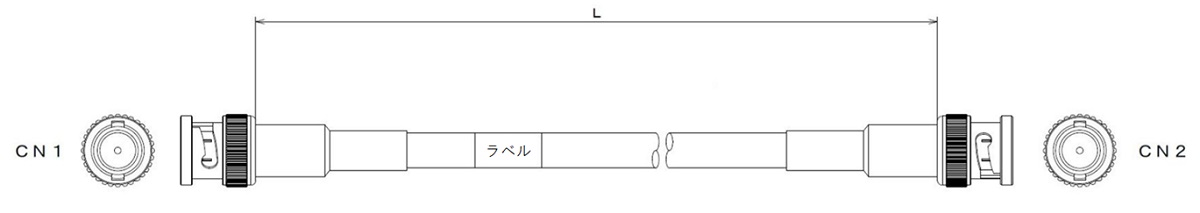

BNC type

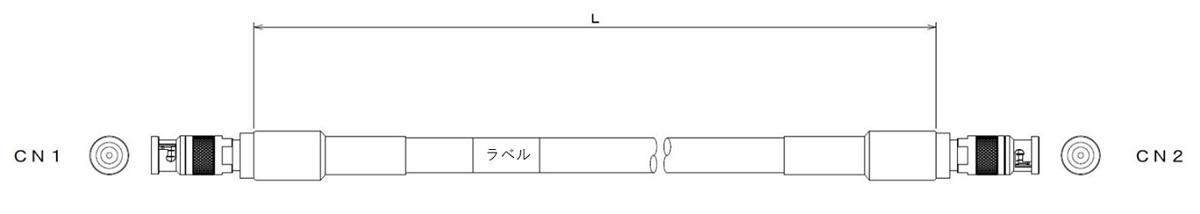

Micro-BNC type
4-core

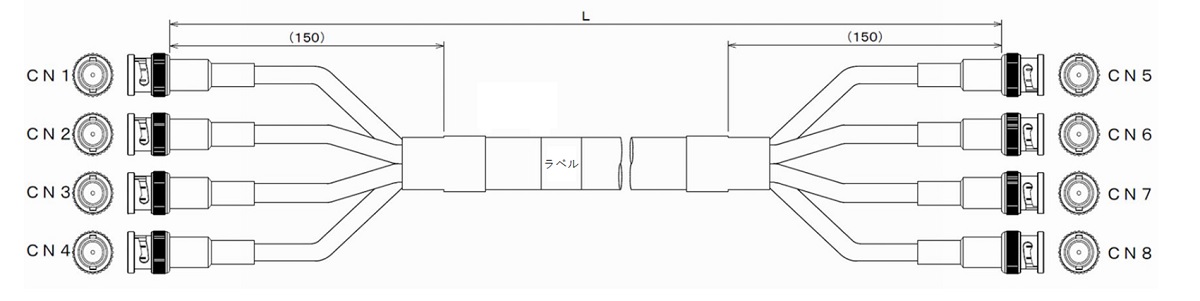

BNC type

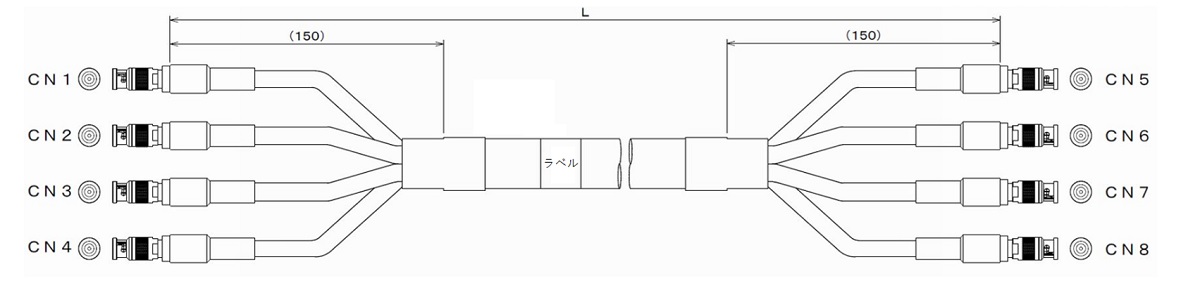

Micro-BNC type
