High sliding 1394.a cable (UL20276)

UL STYLE NO.20276 80degrees 30V

Outline

High sliding 1394.a cable

This 1394.a cable has excellent sliding performance. The maximum cable length is 4.5m, but the cable can be used over a long distance by using it in combination with a 1394 long cable series.

  • * : These cables are sold fitted with 1394.a connectors.

Features

  • Suitable for applications requiring sliding characteristics for wiring in a cableveyor.
  • High sliding performance is realized by the conductor construction and the cable material.

Applications

  • Suitable for use in the cableveyors of production equipment.
  • Suitable for connecting to moving parts, such as to a camera mounted on a robot.

Specifications

UL STYLE 20276 (Rating: 80degrees 30V VW-1)
Connector size AWG28 (signal wire) Connector 1394 connector with latch mechanism
Shield Braided shield Cable length 0.5m to 4.5m(0.5m intervals)
Sheath Heat resistant PVC Transmission speed 100M/200M/400Mbps
Cable O.D. 7.4mm (standard) Flame retardant characteristics VW-1
Slide count 5,000,000 times or more(Our test conditions: See below)
Sheath material PVC

Construction

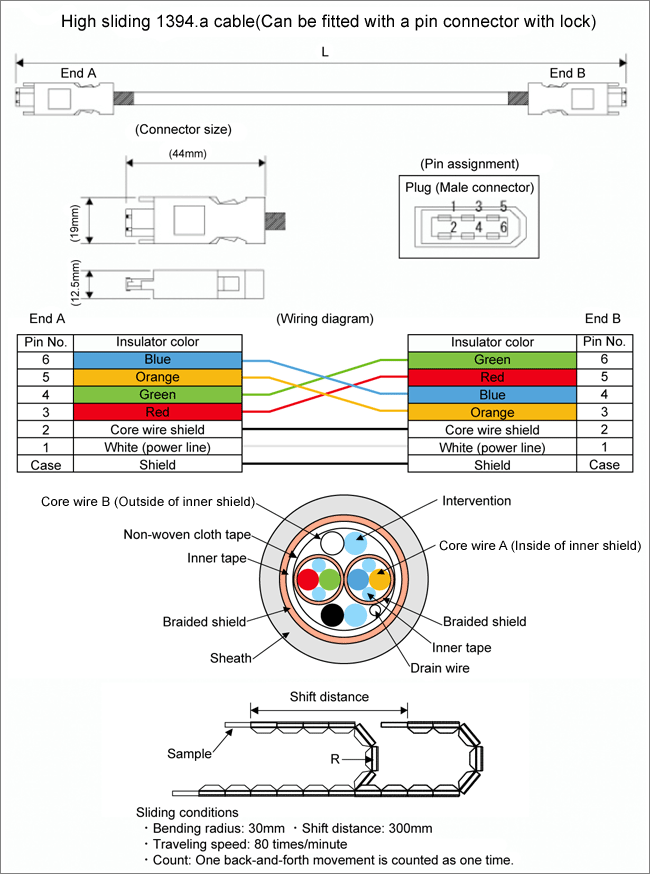

High sliding 1394.a cable (Can be fitted with a pin connector with lock)

Type

Item name High sliding 1394.a cable
Type No. 1394 K1 L=*.*M

*.* : Enter the cable length. Up to 4.5m in 0.5m intervals
