USB3 Vision Movable Cable

Overview

These USB3 Vision-compliant interface cables combine 5Gbps high-speed transmission performance with excellent durability and high movability.
These cables have been built for use with FA equipment that tend to apply movement force and vibration on connected cables, featuring connectors with a screw lock designed to prevent accidental unplugging to ensure highly reliable connection.

Features

USB3 Vision Movable Cable

  • These cables feature a durability of over 1 million times in a sliding fatigue test.
  • These cables ensure highly reliable connection by means of USB3 Vision-compliant connector with a screw lock.
  • This product is suitable for accommodation in a cable carrier for use in moving parts.
  • This product is RoHS compliant.

Applications

A USB3 Vision-compliant camera system.
This product is most suitable for use with automatic component mounting equipment, visual inspection systems, medical inspection equipment and semiconductor/LCD steppers.

Specifications

Item Specifications Remarks
Cable length (m) Up to 3 Up to 5GHz
Outer cable diameter (mm) Standard 8.2 -
Characteristic impedance (Ω) Standard 90 Differential between high-speed and low-speed lines
Inward skew (ps/m) 15 or less -
Attenuation (dB) 0.1GHz 1.5 or less High speed line
1.25GHz 5.0 or less
2.5GHz 7.5 or less
7.5GHz 25 or less
Sliding count More than 1 million times As per Oki Electric Cable’s in-house test conditions

Attenuation performance

Attenuation performance

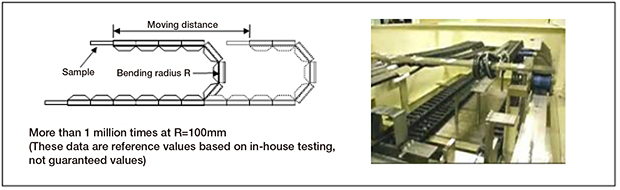

Sliding performance

Sliding performance
