Highly flexible Cat.5e LAN cables

UL Style No.20276 80degrees 30V

This is a high flexibility shielded cable which uses a special polymer and a special shield, realizing innovatively high bending resistance.
It supports Gigabit Ethernet, and realizes 1Gbps high-speed data transmission.
It also supports high-speed data transmission in industrial Ethernet, industrial machine vision, etc.

  • Standard shielded-type
    Standard shielded-type
  • Screw lock-type
    Screw lock-type

Top of this page

Outline

High-speed camera image transmission formats that use Gigabit Ethernet are standardized.
Oki Electric cable offers the TPMC-C5e (S-HFR) cable as the optimum high flexibility shielded cable for industrial applications which support these high camera image transmission formats.

Top of this page

Applications

  • Can be used as a LAN cable that supports the 1000BASE-T format (transmission speed 1Gbps).
  • Is suitable for applications such as robots and FA devices which require high bending resistance and sliding resistance.
  • Can be used to connect industrial high-speed cameras to terminal equipment, particularly those that support Ethernet.
  • This cable has an oil resistant sheath, enabling it to be used in severe environments such as those encountered in factories.

Top of this page

Features

  • This cable is intended for movable applications. It uses high flexibility special polymer insulation and a special braided shield, resulting in high bending resistance and high sliding resistance, and can also withstand twisting motion.
  • The special braided shield increases noise immunity.
  • It supports industrial high-speed camera image transmission formats.
  • It has an oil resistant sheath, making it suitable for use in factory environments, for example.
  • It can be used with general shielded modular plugs.

Top of this page

Cable construction

Cable construction

Top of this page

Construction and performance

  • TPMC-C5e (S-HFR) cable
ItemConstructionItemConstruction
ConductorO.D.AWG26 twisted wire conductorShieldTypeSpecial braid
InsulationTypeSpecial polymerO.D.5.4mm
O.D.0.94mmShieldTypeOil-resistant PVC
Number of pairs4 pairsO.D.6.8mm
ItemPerformanceItemPerformance
Max cable length40mRating30V 80degrees UL-certified product
Characteristic impedance100 +/-15ΩVoltage withstandAC350V-1 min
Loss24 dB/40m max (20degrees) Fire retardancyUL VW-1
Near-end crosstalk loss30 dB (@ 100 MHz) minOil resistance characteristicsJIS K6723
PSNEXT27 dB (@ 100 MHz) minBending resistanceSliding3 million cycles (R50)
Return loss10 dB (@ 100 MHz) minBending0.3 million cycles (R20)
Conductor resistance14.9 Ω/km max (20degrees)Twisting5 million cycles (+/-180degrees)

Top of this page

Performance

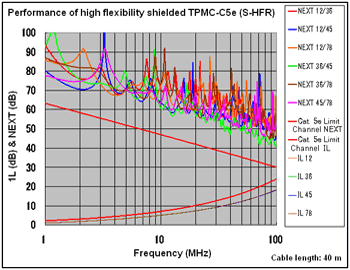

Performance1

Has adequate performance margin for both crosstalk (NEXT) and loss (IL) with respect to the transmission standard for gigabit Ethernet.

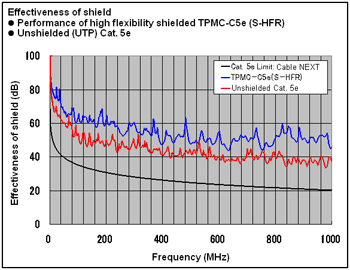

Performance2

The shielding effect of the high flexibility shielded TPMC-C5e (S-HFR) cable is about 10 dB compared to the unshielded (UTP) Cat. 5e cable.

  • *1 :Please contact us regarding compatible modular plugs.
  • *2 :The transmittable distance is the channel length.
  • *3 :Please contact us for details of the bending resistance.
