GVIF／GMSL compliant
Machine Vision Cable with FAKRA Connectors
Features
Jack (left) and Plug (right)
- FAKRA connectors as the standard interface for high-frequency telematics applications in automobiles,
and achieves IPX7 waterproof performance. - Smaller diameter than our GiGE, USB3, and CXP12 cables for movable wiring
- Cables for fixed wiring, as well as for sliding and movable wiring.
Up to 4 cables can be connected and max 15 meters are supported.
This allows you to separate wiring for fixed and movable sections, which improves maintainability.
Prouduct name
FKR（CX） - ① - ② - ③ - ④
- ①Cable Type Code
- Fixed Wiring: H Movable Wiring: K
- ②Connector Combination
- Code Both Ends Plug: PZPZ Jack / Plug: JZPZ
- ③Waterproof
- With waterproof: WP Without waterproof: Not indicated
- ④Cable Length
- Example codes 3m: 030 15m: 150 Specifications
Specifications
| Fixed wiring | Movable wiring | |
|---|---|---|
| Cable outer diameter | 3mm | |
| Compatible connector | FAKRA（Jack type, Plug type） | |
| Transmission distance | Up to 15m | Up to 5m |
| Movement performance | - | Over 10 million sliding bending cycles（R=37mm） |
| Operating temperature tange | -10 ～ 60°C | |
- * The test conditions and methods are unique to our company. These data are reference values and are not guaranteed values.
Configuration diagram

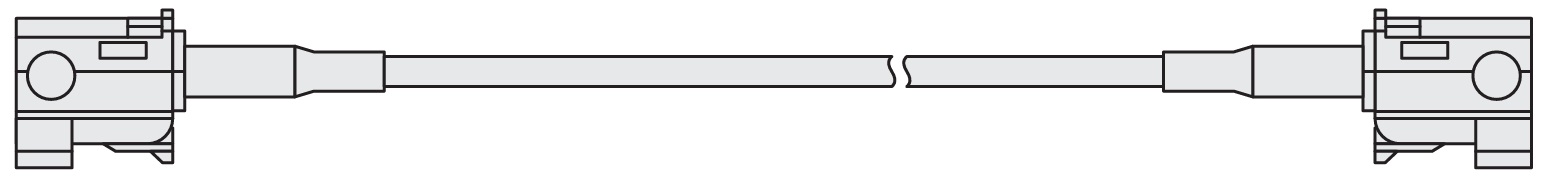

Jack-to-Jack Specification （for Camera to Grabber Board Connection）

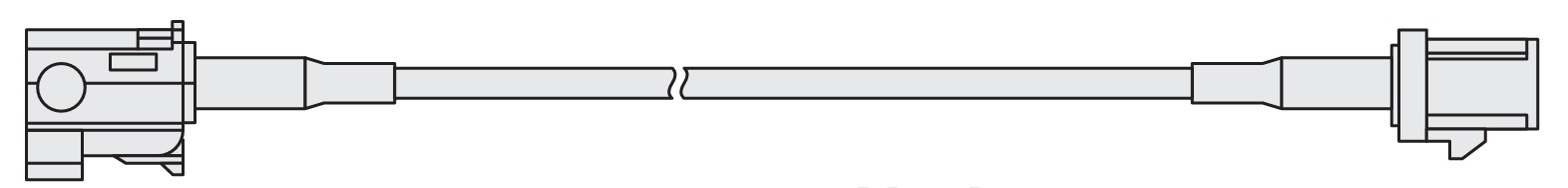

Jack-to-Plug Specification (for Relay/Extension Use)
